Setting up Your RFID Device - Caen skID


Summary

This section contains setup information for using Caen skID UHF (RAIN) RFID reader with TagMatiks AT Lite.

Pre-requisites
  • skID Reader should be sufficiently charged.
  • Android device should be sufficiently charged.
  • Bluetooth of Android device should be ON.
  • Android should be kept near to the skID reader.

This document is divided into multiple sections as:

A. skID Device Information
B. Switching ON & OFF skID Device
C. Pairing of skID Device with Android device using TagMatiks AT Lite Application
D. Reading of RFID Tags using skID Device using TagMatiks AT Lite Application

A. skID Device Information

The skID (Model R1280IE/U) is the portable reader with integrated antenna and ideal for Asset Tracking & Inventory Management applications. skID reader is designed to achieve fast reading speed and can be used in dense tag environments for top-class rated performances. The skID is a perfect addon for any Bluetooth® enabled device (such as an iPhone/Android/Windows based smartphone/laptop/tablet) and can quickly & easily transform the device into a RFID reader.

Below image shows the smartphone and skID working together during operation:

Below image is the front panel view of the skID reader.

Figure 03:skID Reader - Front View

Below image is the bottom panel view of the skID reader.

Figure 04:Turn OFF skID Reader
B. Switching ON & OFF skID Device

I. Switching ON the skID Device:

1. Press the Power button continuously for 3 seconds only.

2. Then its LED lights up GREEN along with beep & vibration; means power is on.

Figure 05: Turn ON skID Reader

II. Switching OFF the Device:

1. To switch off when the skID reader is on, press the Power button continuously for 3 seconds only.

2. Then its GREEN LED light is off, which means skID device is powered off.

Figure 06:Turn OFF skID Reader
C. Pairing with Android device using TagMatiks AT Lite Application

Immediate after when skID device is powered on,

Then the “Power LED” will turn:-
either, Green - if battery is more than 35%
or, Orange – if battery is more than 15 % & lesser than 35%
or, Red – if battery is lesser than 15%

And the “Link LED” will be off; this acknowledges that the skID device is not connected to any Android device.

Figure 07:Pair skID Reader

1. Open the TagMatiks AT Lite application and login into it.

2. On the Home Page, click on the Settings Icon (at the bottom right side of screen); as shown below[figure 08]

3. To make the connection with skID reader; press the “Manage Reader” button - on the left-hand side of the application (highlighted in red color).

4. Select “Caen RFID Readers” (highlighted in red).

Figure 08:Home Page
Figure 09:Click Manage Reader

5. Then a new window will open, named: “Readers List.”

6. Bring skID reader close to the Android device.

7. TagMatiks AT Lite application will show the discoverable reader’s name and MAC Address; as shown below [figure 11]

Figure 10:Select Caen Reader
Figure 11:Reader Name with MAC Address

8. The reader’s name will be “skID-XXXXXXXX”; where “XXXXXXXX” is the last eight-digit value of device serial number.

9. E.g. In the above image, the value “204000496” is the last eight-digit value of device serial number.

10. The MAC address of the Caen device is also reflecting. Here the device’s MAC address is: 04:EE:03:D9:D3:2E

NOTE:

When no skID reader is there nearby the Android device.
OR
If the Bluetooth of skID reader is Off.
OR
skID Reader is not in pairing mode.
OR
skID Reader is already paired with another Android/iOS device.

Then TagMatiks AT Lite application will show “No Available Readers.” Refer below image.

Figure 12:No Available Reader

11. Now press on the available Reader name.

12. Once you press on the reader's name, then the application will start making a connection with that skID device.

13. On successful connection, an acknowledgment/pop window will come – stating that” skID-204000496 has connected successfully”; refer below image[figure 14]

Figure 13: Select Caen Reader
Figure 14:Reader Name with MAC Address

14. Application will also fetch the Serial number and Model name of the connected device and show it along with the reader’s name; as shown in above image[figure 14].

NOTE: The TagMatiks AT Lite App directly searches and pairs with skID. There is no need to first pair with the skID via the normal Bluetooth connection.

D. Reading RFID Tags using skID Device

In TagMatiks AT Lite, please first ensure the configuration settings are in sync with the RFID tags.

1. Please click on the Settings Tab and then click on the “Configuration” under “Admin Settings”

2. Please click on “Asset Configuration” under Asset Tag Format

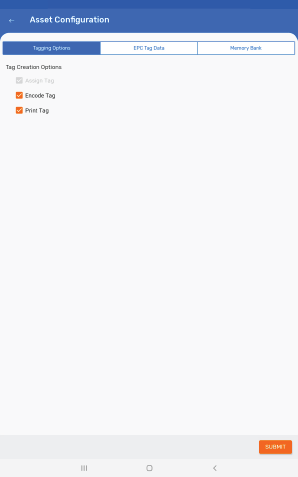

3. A new window will open, where you can see tabs for Tagging Options, EPC Data and Other Memory Banks. As shown below:

Figure 15: Asset Tag Format Configuration

4. To modify the behaviour of associating RFID tags to assets; please read the article named:"Configured Overview"

5. Once the tag format configuration is properly saved; go to the “Home” page.

6. Press the “Inventory” button - on the bottom left-hand side of the application.

7. Then a new window will open, named: “Inventory.”

8. For taking the inventory, click on a location. In this example, "San Francisco" is selected.

Figure 16: Click Inventory
Figure 17:Select Inventory Location

9. Press the “Start” icon bar button on the AT Lite application, then the skID reader will start reading the RFID tags. Please refer below image [Figure 18]

10. Once you press the “Stop” icon bar button on the application; then the skID reader will stop reading the tags.

11. As a result, the read tag will populate on the application window, as shown in below image [Figure 19].

Figure 18: Scanning Inventory Tags
Figure 19: Scanned Tags - Matched
