Setting Up Your RFID Printer – Zebra Printer


Summary:

This document provides information about Zebra Printer Setup, label design in Zebra Designer, Writing the tags with TagMatiks AT Lite

Pre-requisites
  • Zebra Printer.
  • RFID Labels
  • Windows PC, Zebra Designer & Zebra Setup Utilities Software
  • Windows device should be sufficiently charged.
  • Bluetooth of Windows device should be ON.
  • Windows should be kept near to the Zebra Printer.

This document is divided into multiple sections as:

  • Zebra Printer Information
  • Zebra Printer Setup.
  • Calibration.
  • Activating Zebra Designer and Label Setup.
  • Creating PRN For Printing the tag
  • Connecting the printer with TagMatiks AT Lite application.
  • Variable Mapping and Printing with TagMatiks AT Lite.
A. Zebra Printer Information

Consider Zebra thermal desktop printer which is ideal for printing and encoding RFID tags .Although many Zebra’s printers support both direct thermal and thermal transfer printing and is compatible with inlays from almost all of the manufacturers. Here we are considering the Zebra’s ZD500R as a reference.

Below image shows the ZD500R printer :

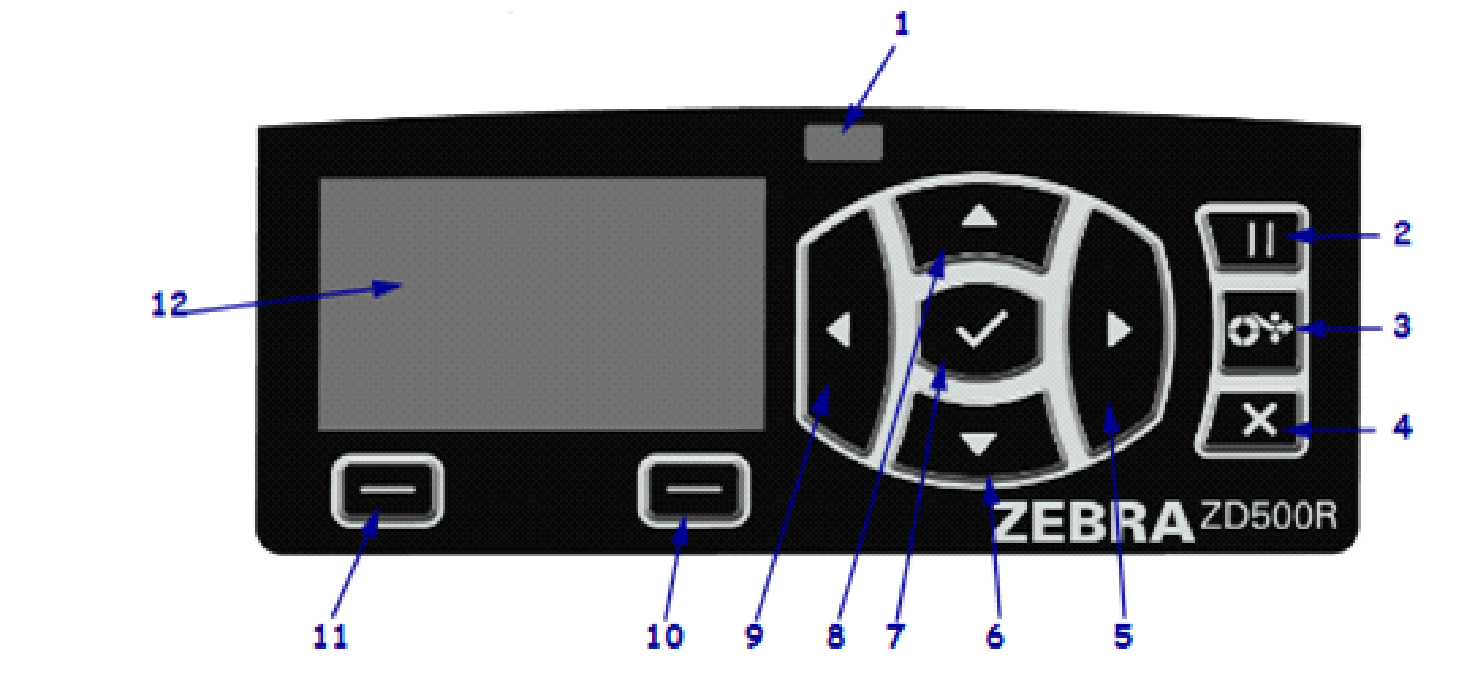

The Control panel and its functionalities are almost similar in all Zebra printers. As reference, ZD500R printer is considered for explaining the control panel functions.

B. Zebra Printer Setup

1. Place the printer in a safe location with access to power and where cable or the wireless option communications can access your printer.

2. Attach the printer to a grounded AC power source.

3. Select and prepare media for your printer.

4. Load the media.

5. Load the transfer ribbon if you are using thermal transfer media.

6. Turn the printer ON. Print a ‘Configuration Report’ to verify basic printer operation.

7. Turn the printer OFF.

8. Attach the printer to the network or host system, and configure the printer as required for communicating to the print system host/network. For supported Windows Operating systems (most common) with a Local (cabled) connection:

9. ‘Run’ the Zebra Setup Utilities for systems from the User’s CD or you can download it from the link

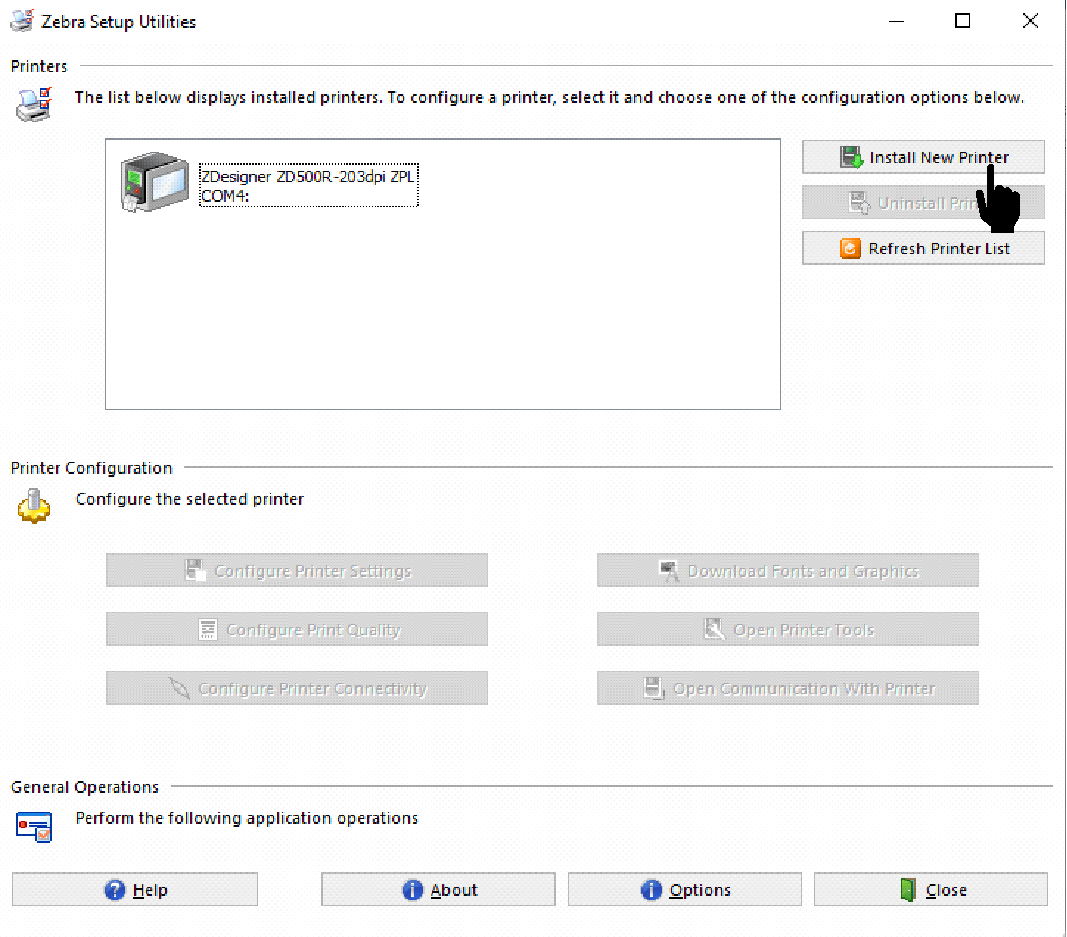

10. Click on ‘Install New Printer’ as shown in image above and run the install wizard. Select ‘Install Printer’ and select the Printer name from the list of ZDesigner printers; here ZD500R is considered.

11. Select the communication port (USB, Serial or Parallel) that you connected to the PC.

12. Turn the printer ON and configure printer communications for your interface type.

13. Print a Windows driver ‘Test Print’ to verify operation with Windows.

C. Calibration

Before beginning, load RFID media into the printer and perform the manual media calibration.

1. Press the Feed button once to feed (advance) one label.

2. Press the menu’s ‘Home’ ( ) button. Navigate to the ‘RFID’ ( ) menu button and press the ‘Select’ () button.

3. Use the ‘Left’ (τ) and ‘Right’ (υ) navigation arrows to browse to the ‘RFID CALIBRATE’ procedure. Press the select button (—) it is below the START on the lower right hand of the display.

4. The printer will slowly feed a label while adjusting the location and RFID read/write communication settings for your chosen RFID tag/label. The printer will feed an additional label in some cases when calibration has completed successfully with the display message reading: READY

5. Remove excess media. Media calibration has finished and you are ready to print.

D. Activating Zebra Designer and Label Setup.

Zebra Designer helps you design and print labels on Zebra printers from your computer. There are two editions to choose from:

1. Zebra Designer Essentials is free to use and requires no activation. It offers basic label design features.

2. Zebra Designer Professional is free to use for 30 days, then requires purchase and activation. It offers advanced features to help you design more complex labels based on fixed or variable data and also includes database and RFID support.

3. Download the Zebra Designer 3 and install in your computer.

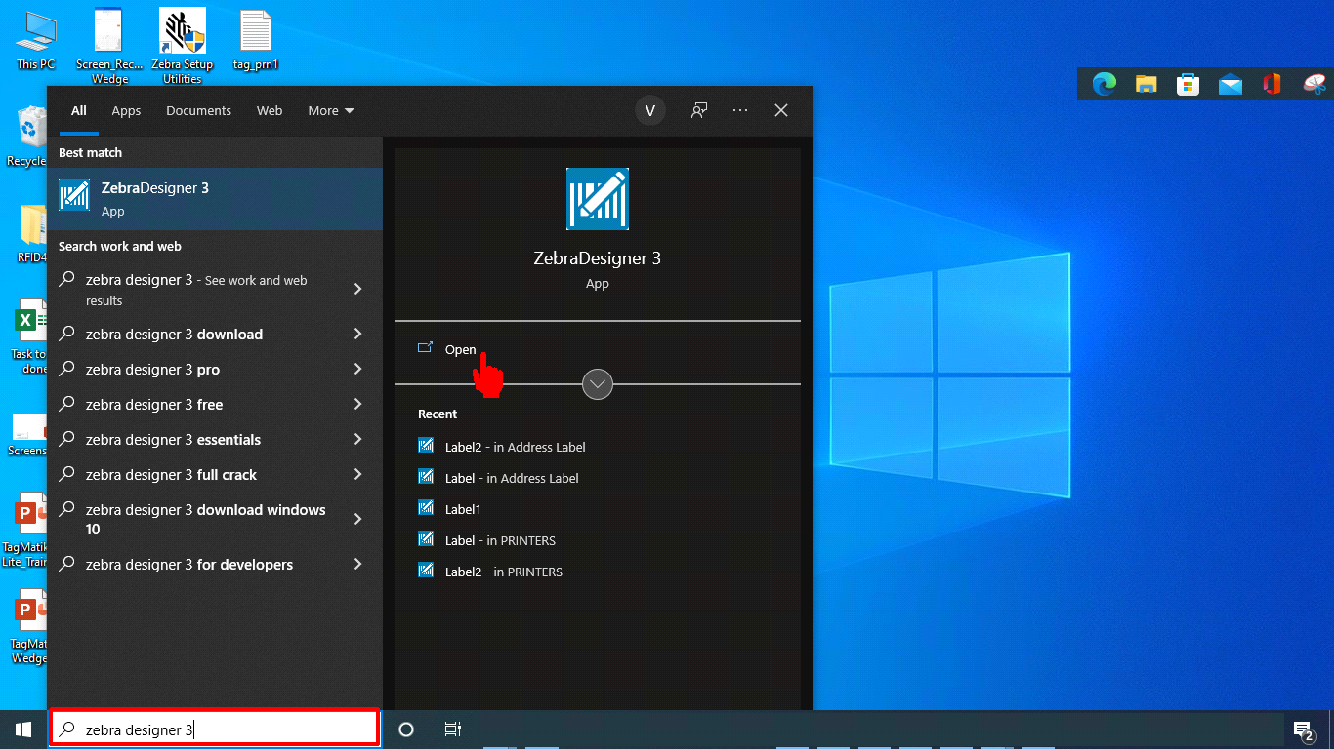

4. Please search Zebra Designer 3 in your windows search bar and click on “Open” as shown in image below.

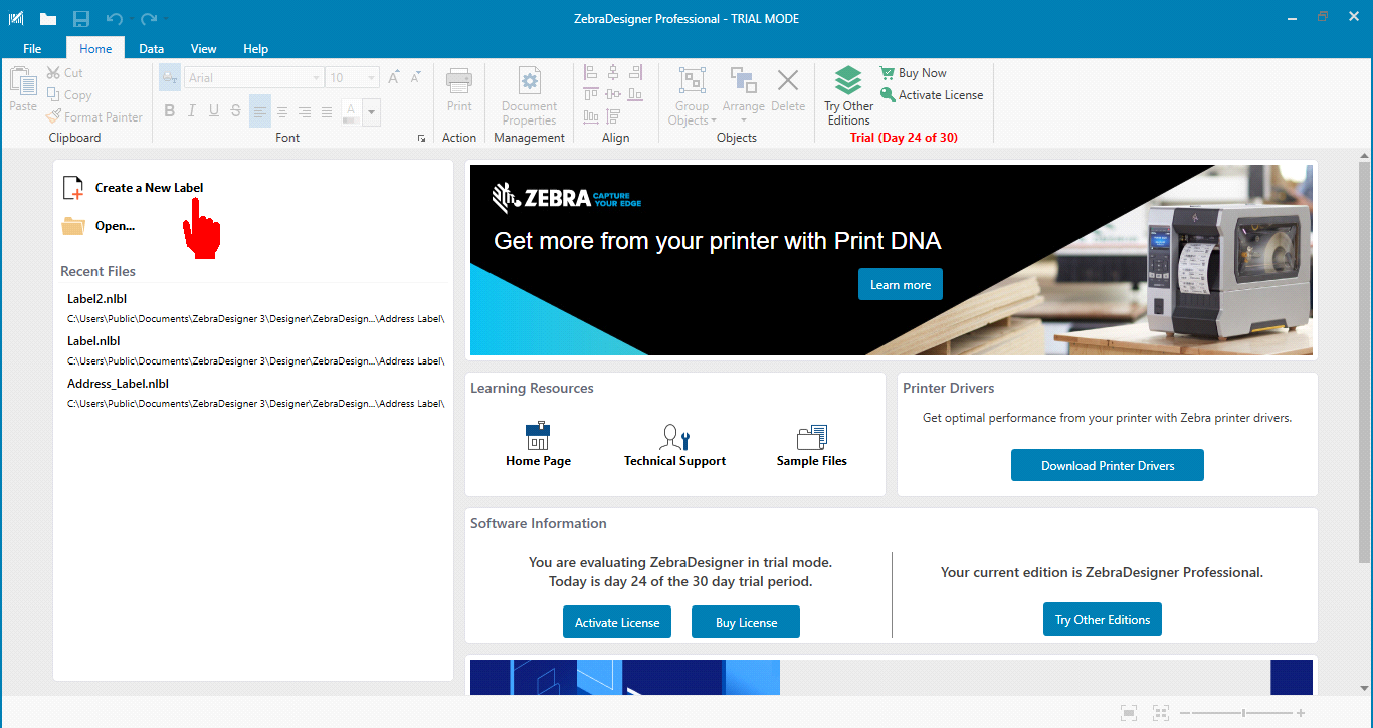

5. Click on create a New Label.

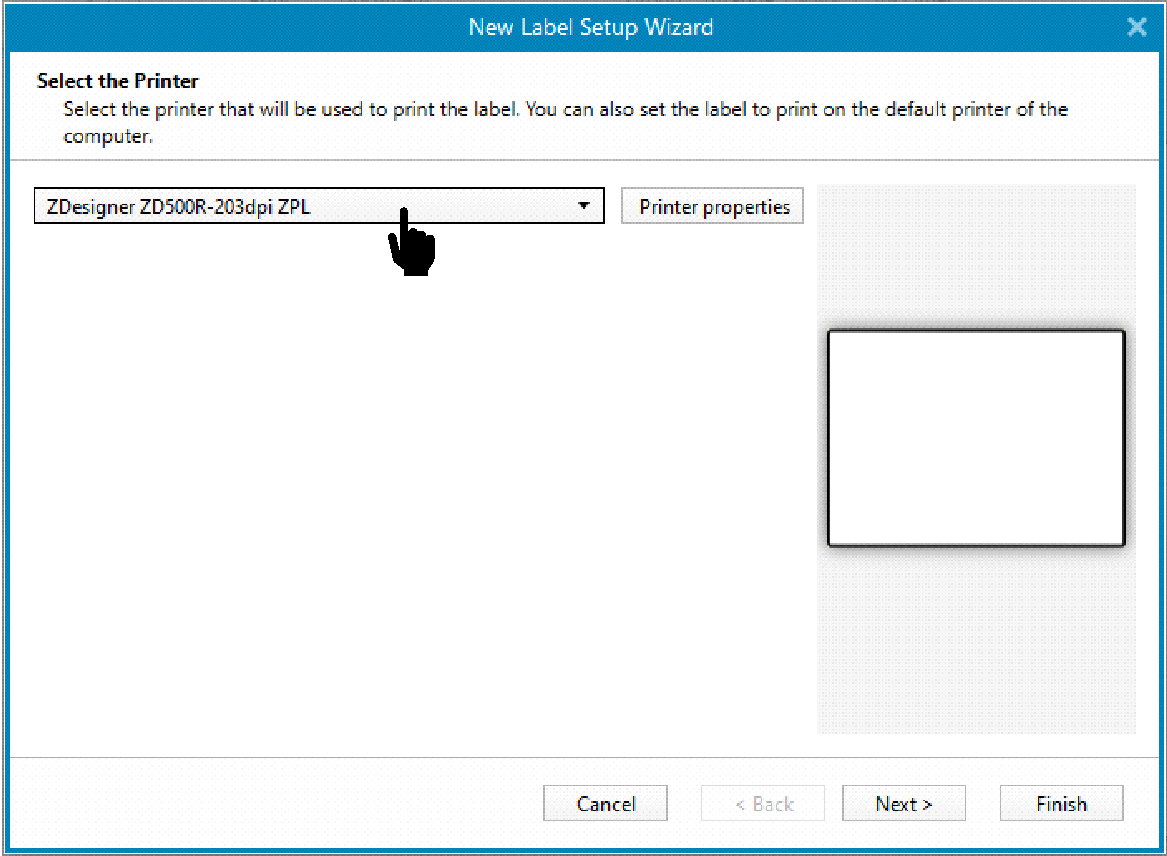

6. Select the printer from the dropdown list as shown in below image. Label setup wizard remembers the last selected printer. When creating another new label, the wizard will automatically select the printer that you selected for your last created label. If this printer is currently missing, your default printer is selected

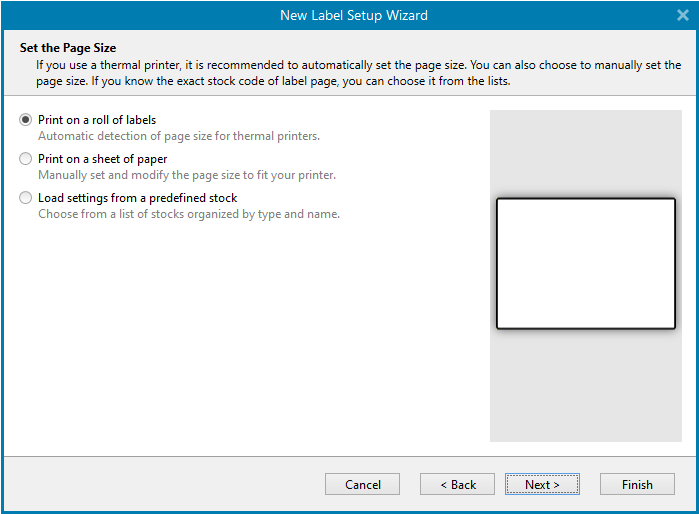

7. Please set the page size.

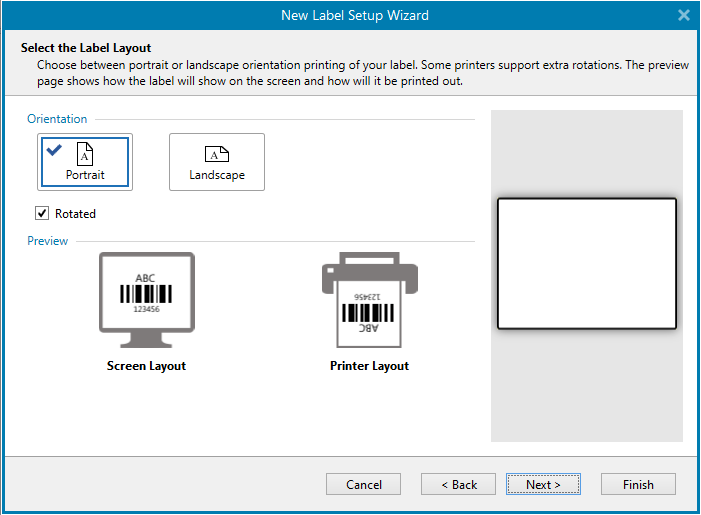

8. Select the label layout orientation, like here selected as : “Portrait”.

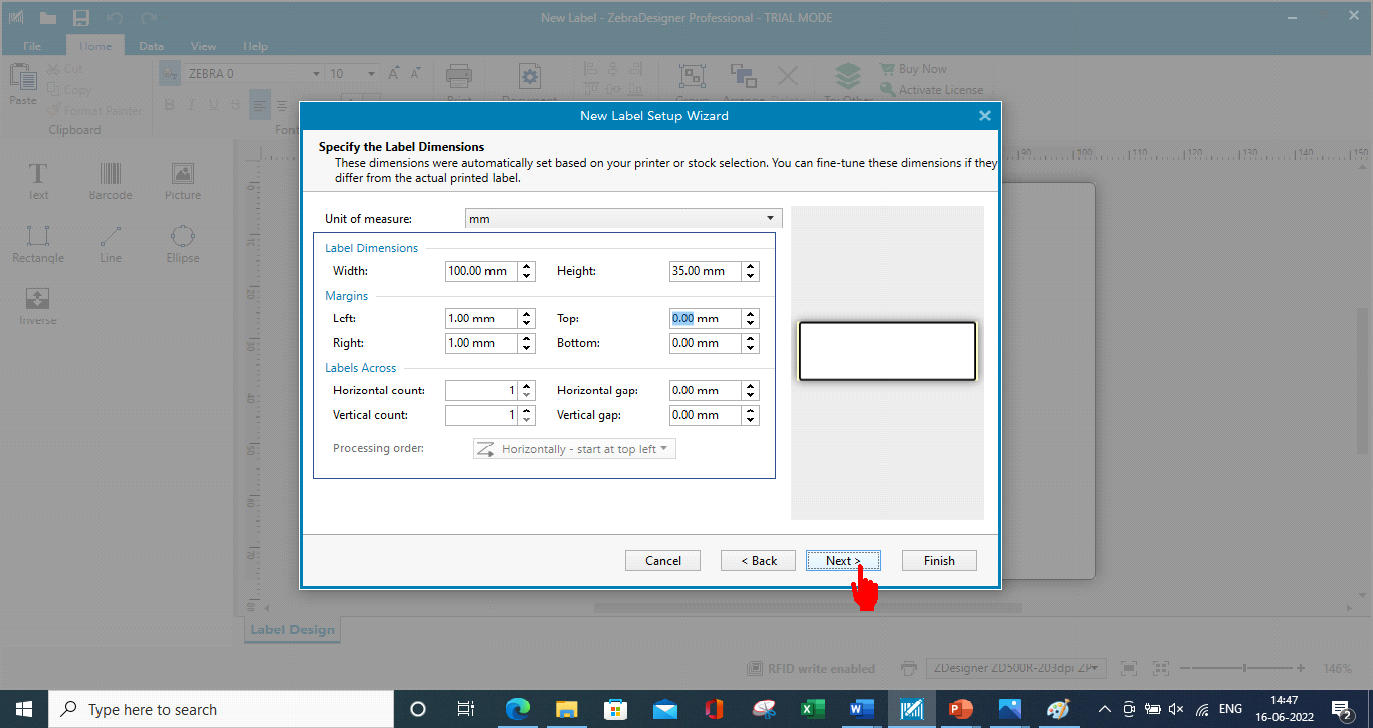

9. Specify the label dimensions and click on “next” as shown in the image below.

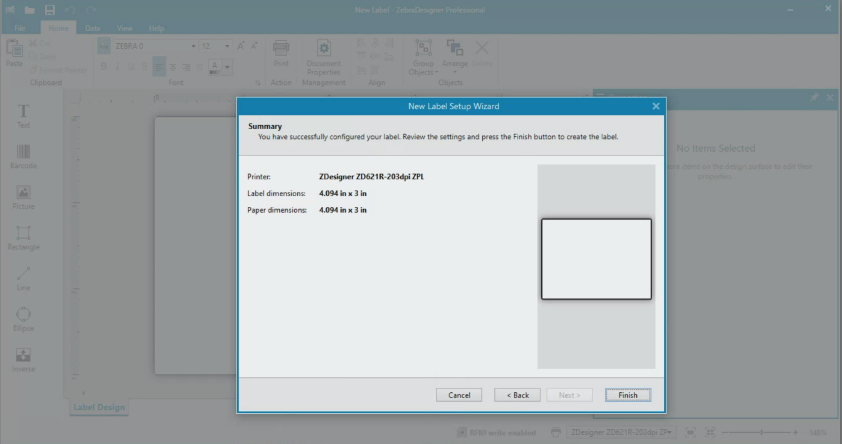

10. You will see the summary of the Label dimensions; then click on “Finish”.

11. After setting the label properties, it's time to start adding content into the label.

12. Label objects are basic design items that are used for adding and editing various content types. Each object has its own function.

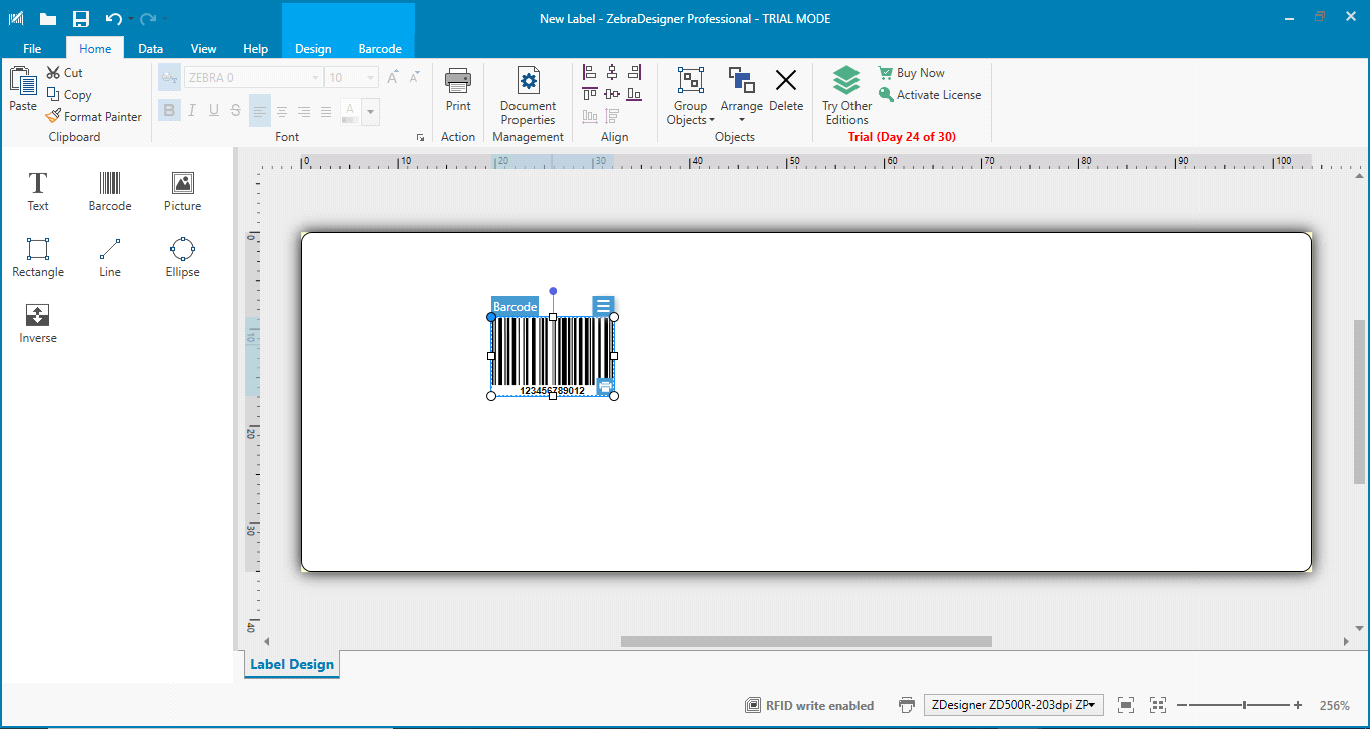

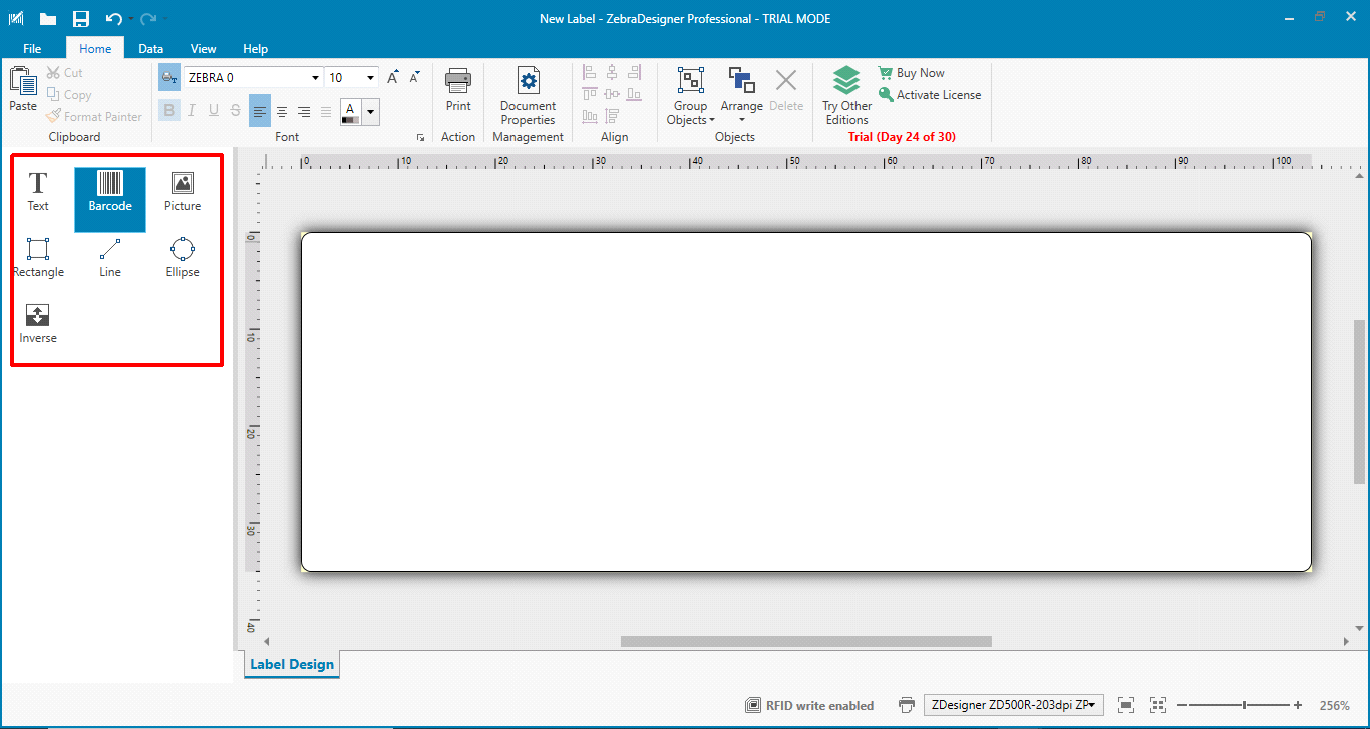

13. Click on object which you would like to add on the label and drop it on label area as shown in the image below.

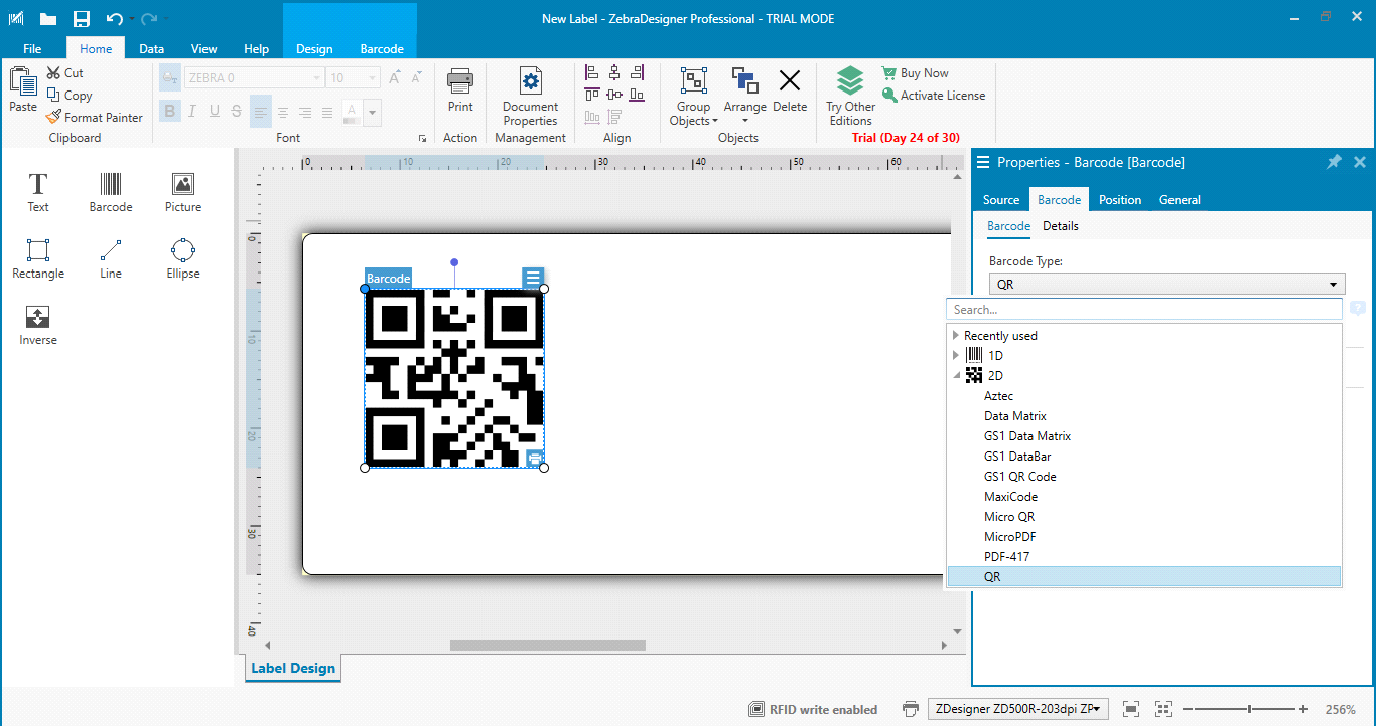

14. Double click on object to change the properties of object like data, symbology and fonts.

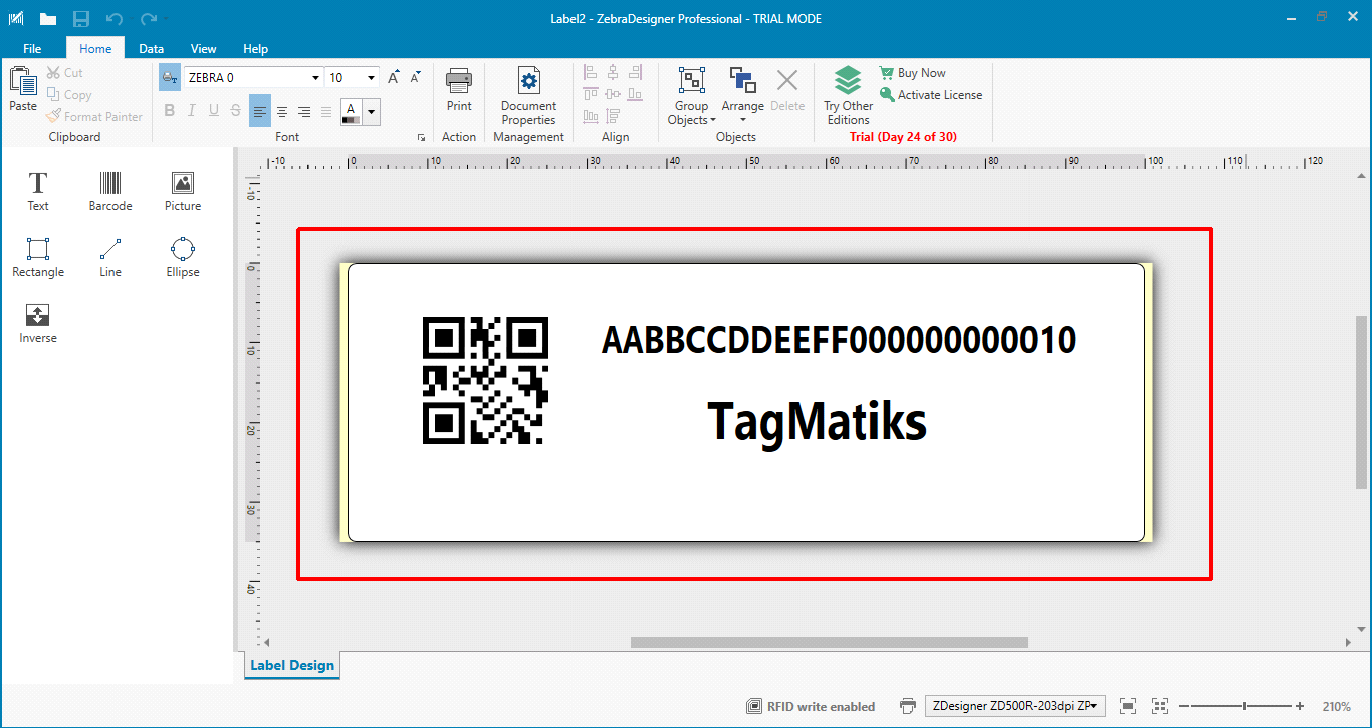

15. Add all objects, like barcode and text which you are required, as shown in the image below.

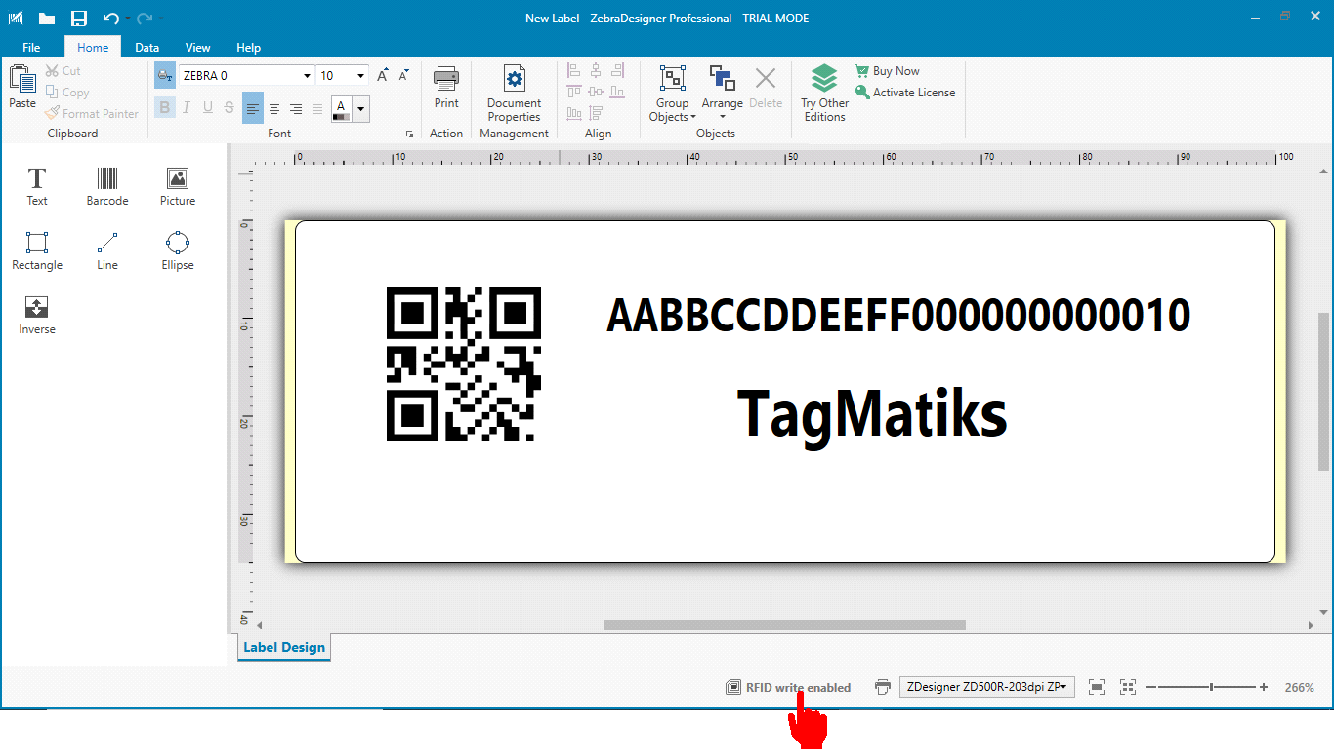

16. Please click on “RFID write enabled” at the bottom of the application.

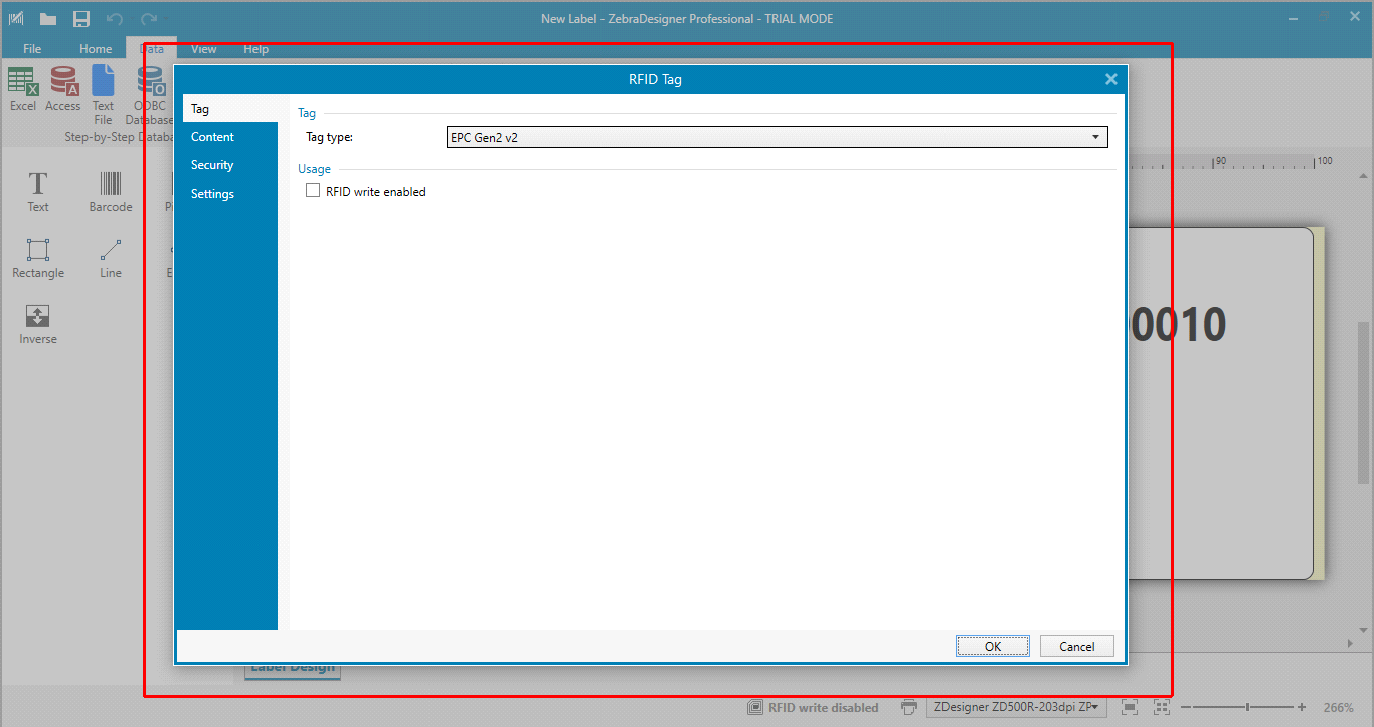

17. New popup windows will open with name “RFID Tag” as highlighted in red.

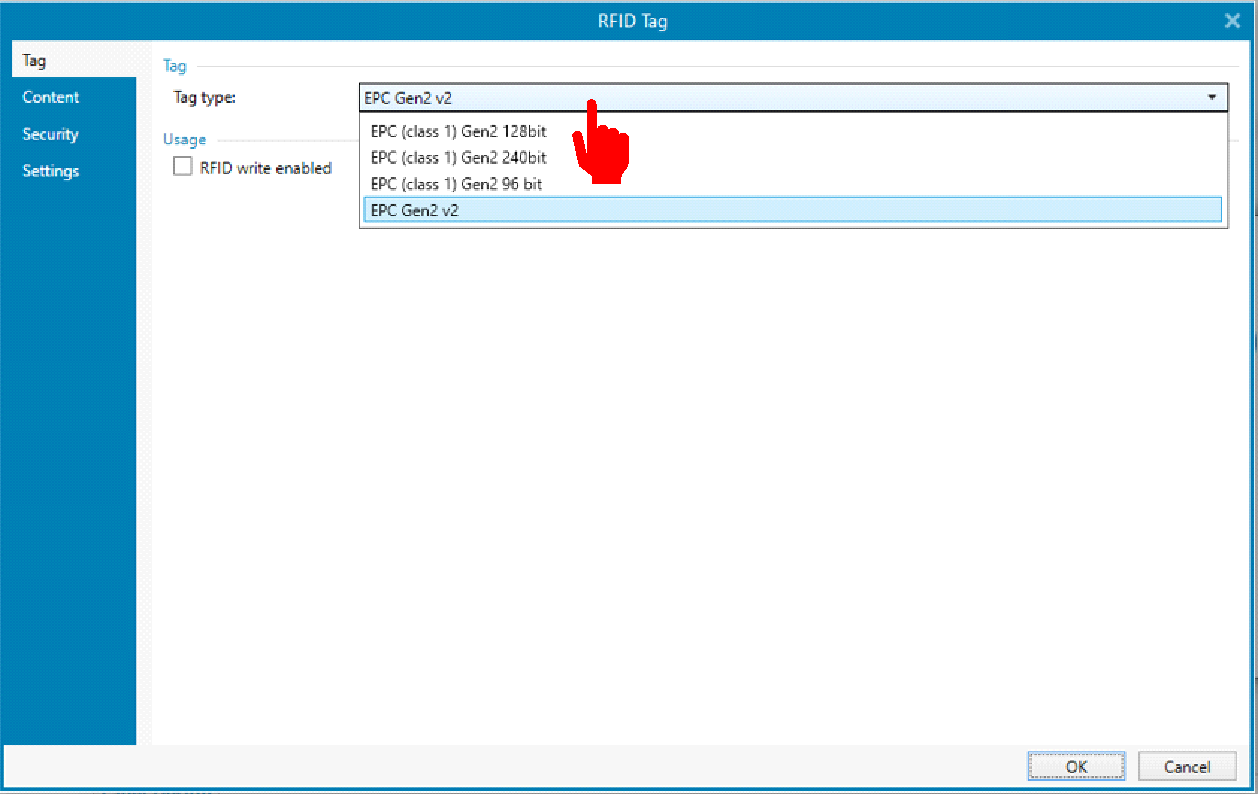

18. Click on “Tag Type” dropdown to select the tag type. This is basically the memory size of the tag.

19. Under “Usage”, enable the check box “RFID write enabled”.

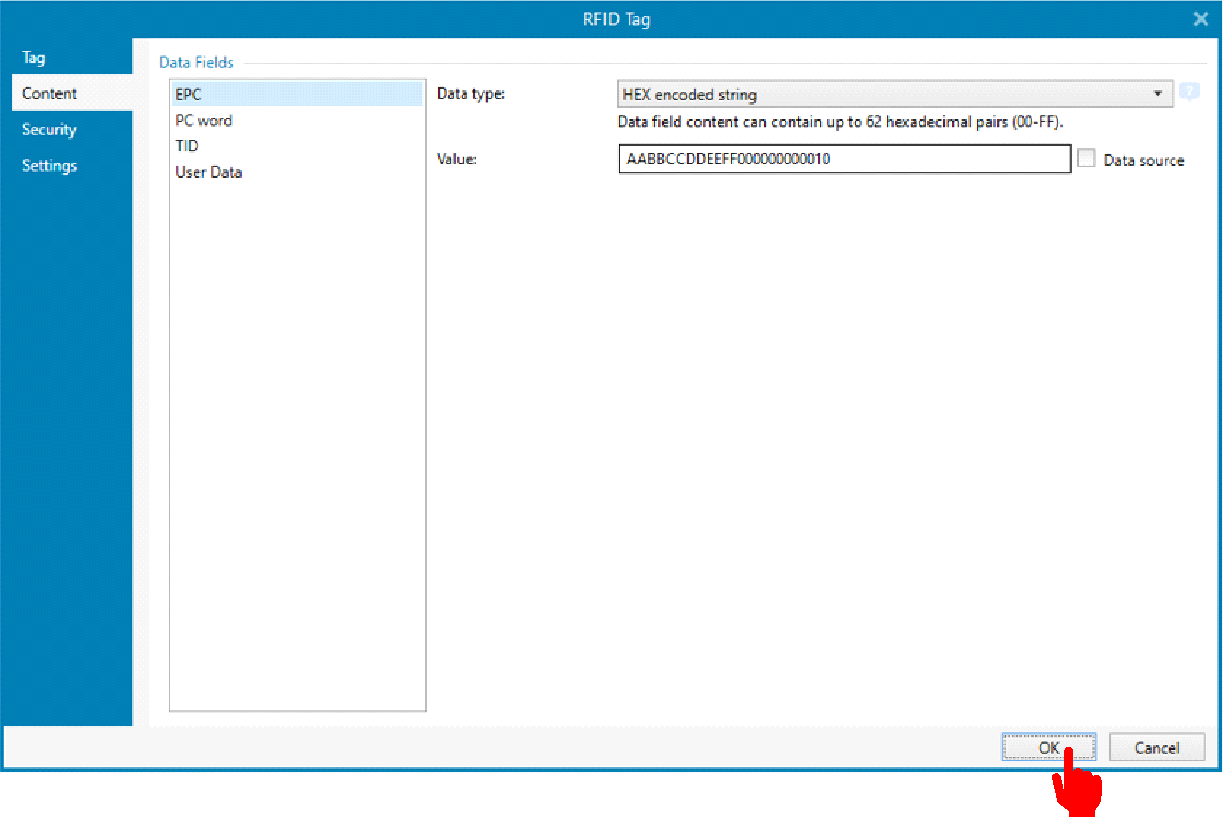

20. Please click on the “Content” and then select “EPC”

21.Please select the “Data type” as “Hex encoded string” from the dropdown.

22. Then enter the 24-digit hex values of EPC as shown in the image below.

23. Please click on “OK” button to save the settings.

E. Create PRN For Printing the tag

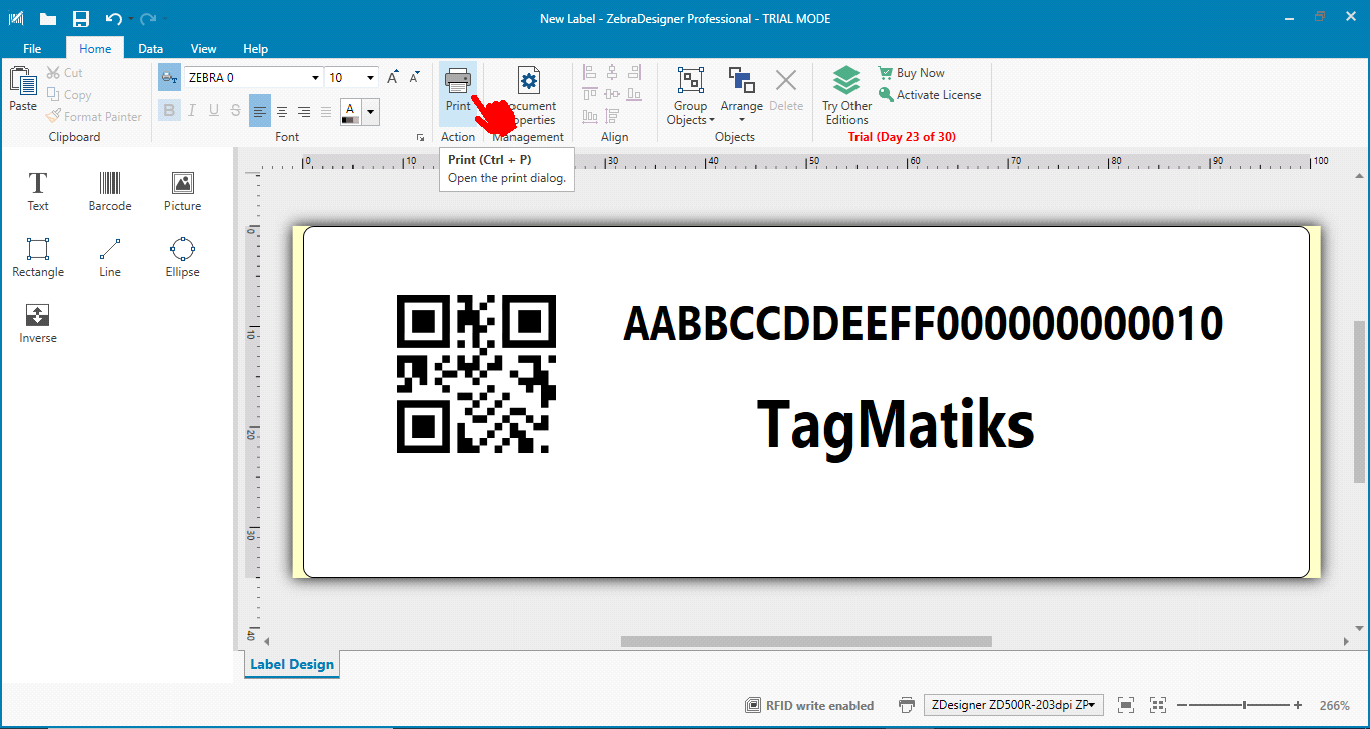

1. Please click on “print” icon or press “ctrl+p” for open the print dialog window.

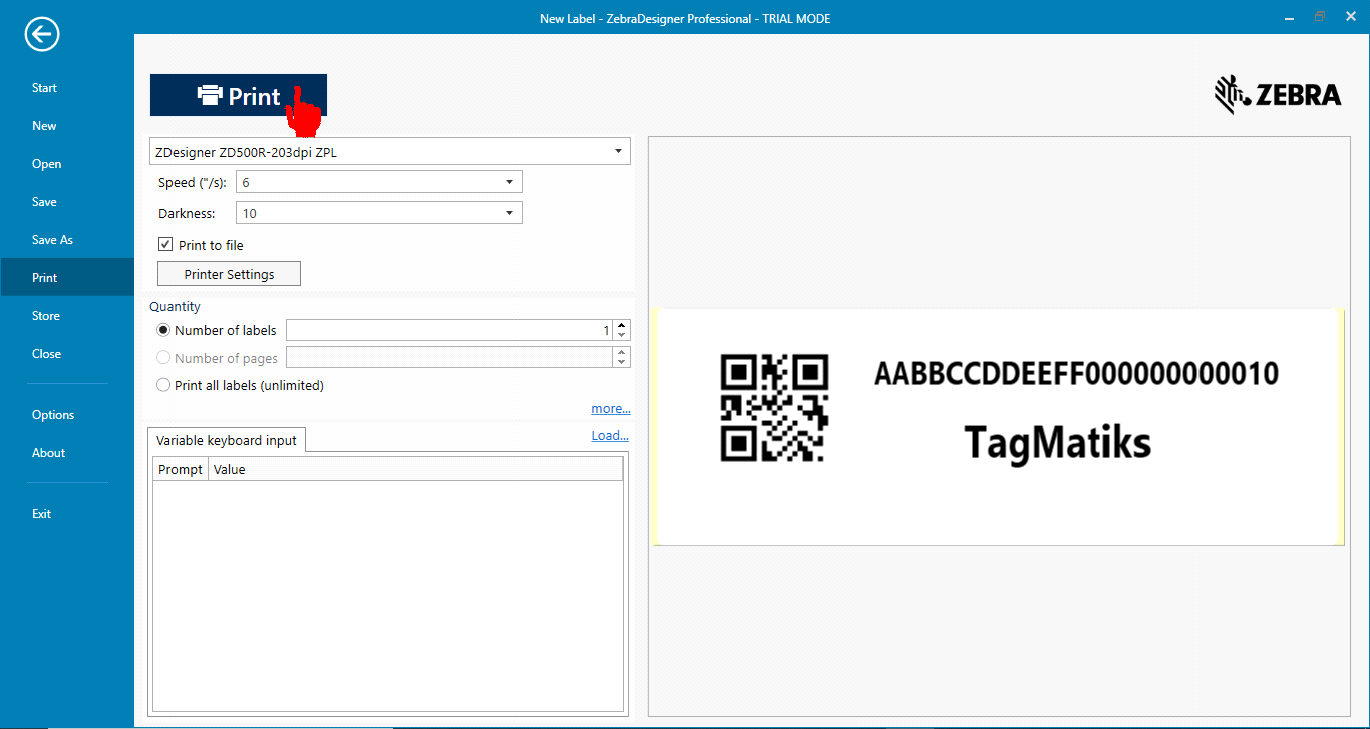

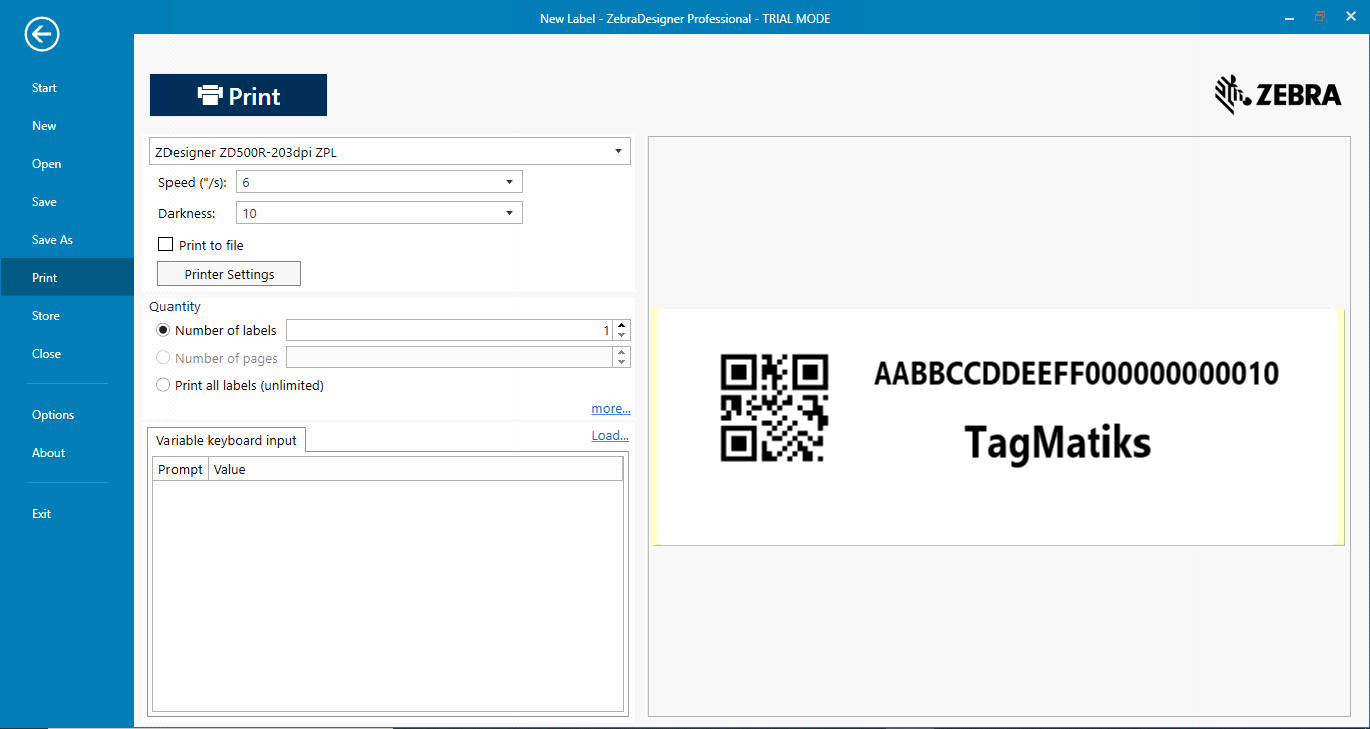

2. Print dialog window will open as shown in the image below.

3. Please enable “Print to file” check box to create the print file.

4. Please click on “Print” button.

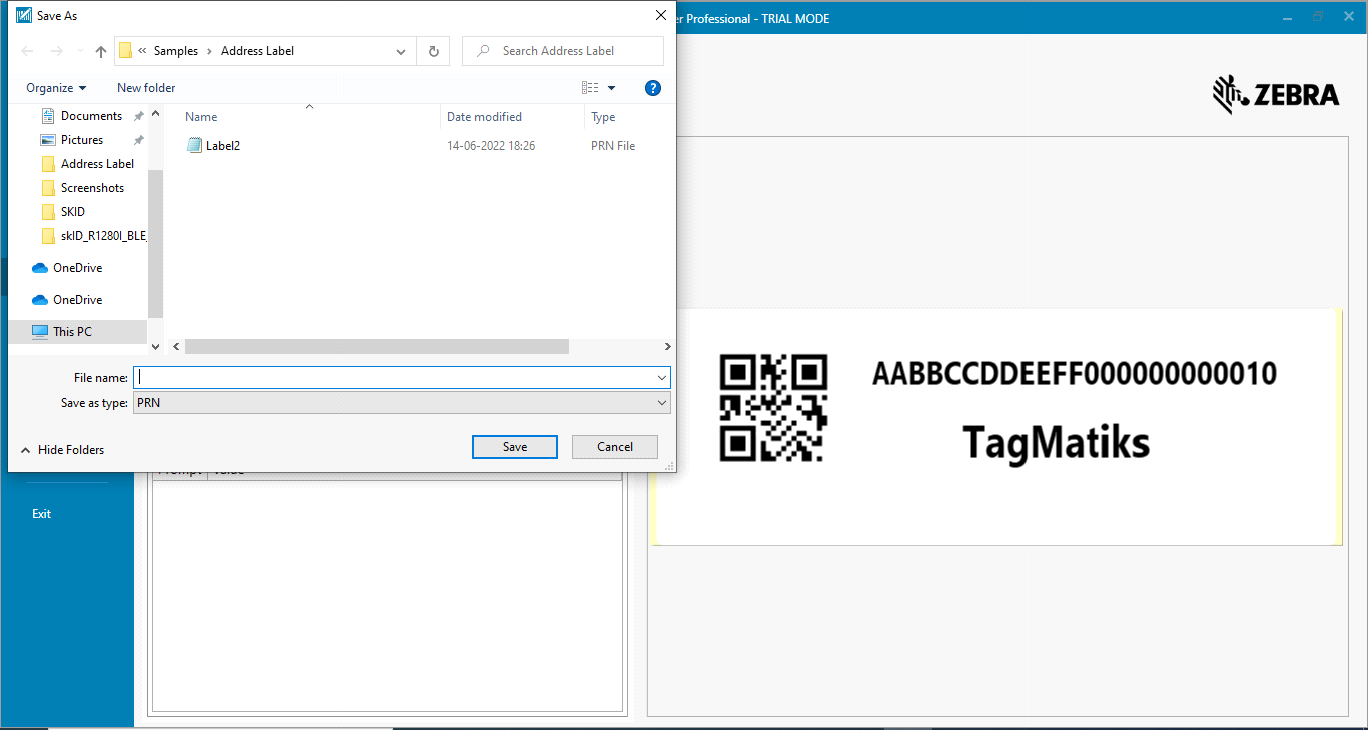

5. It will redirect you to a path to save the print file (prn file). Please select the folder, where you want to save the prn file.

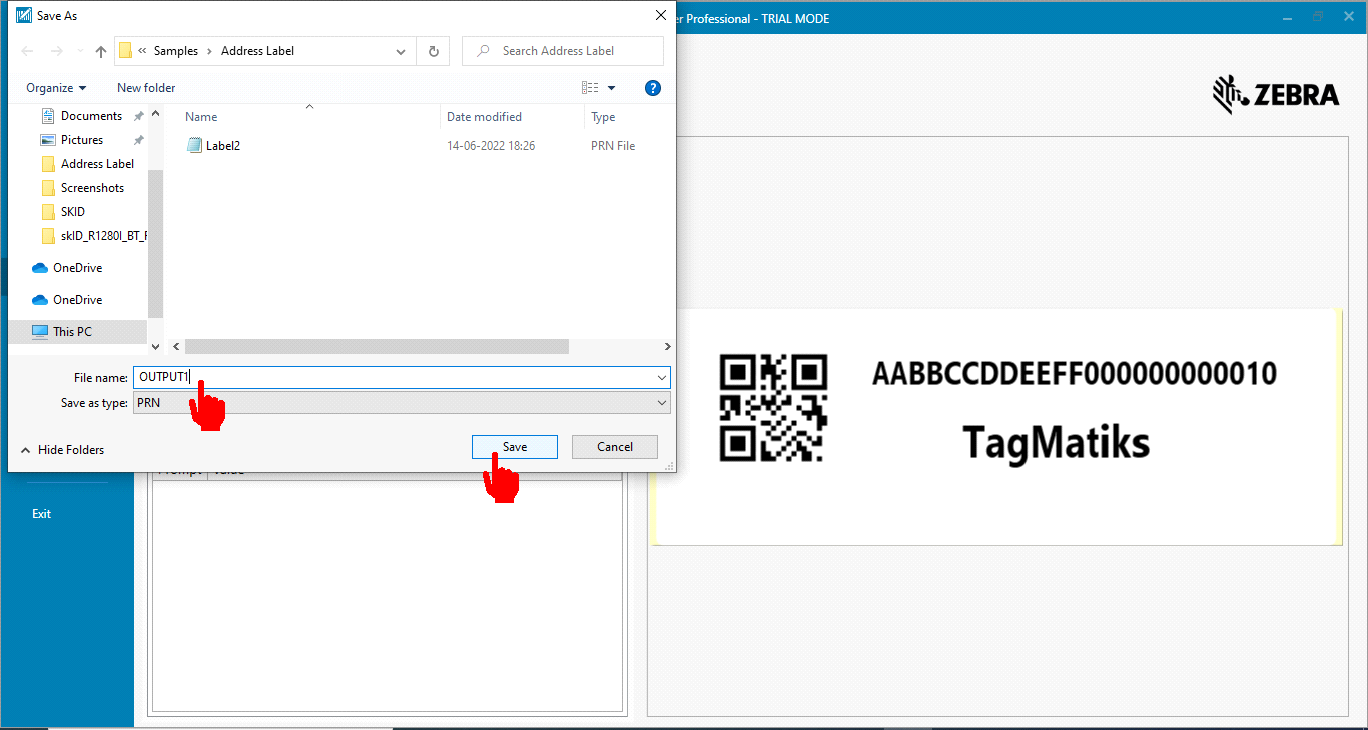

6. Please enter the file name and click on “save” button, as shown in the image below, here the file name is given as “OUTPUT1”.

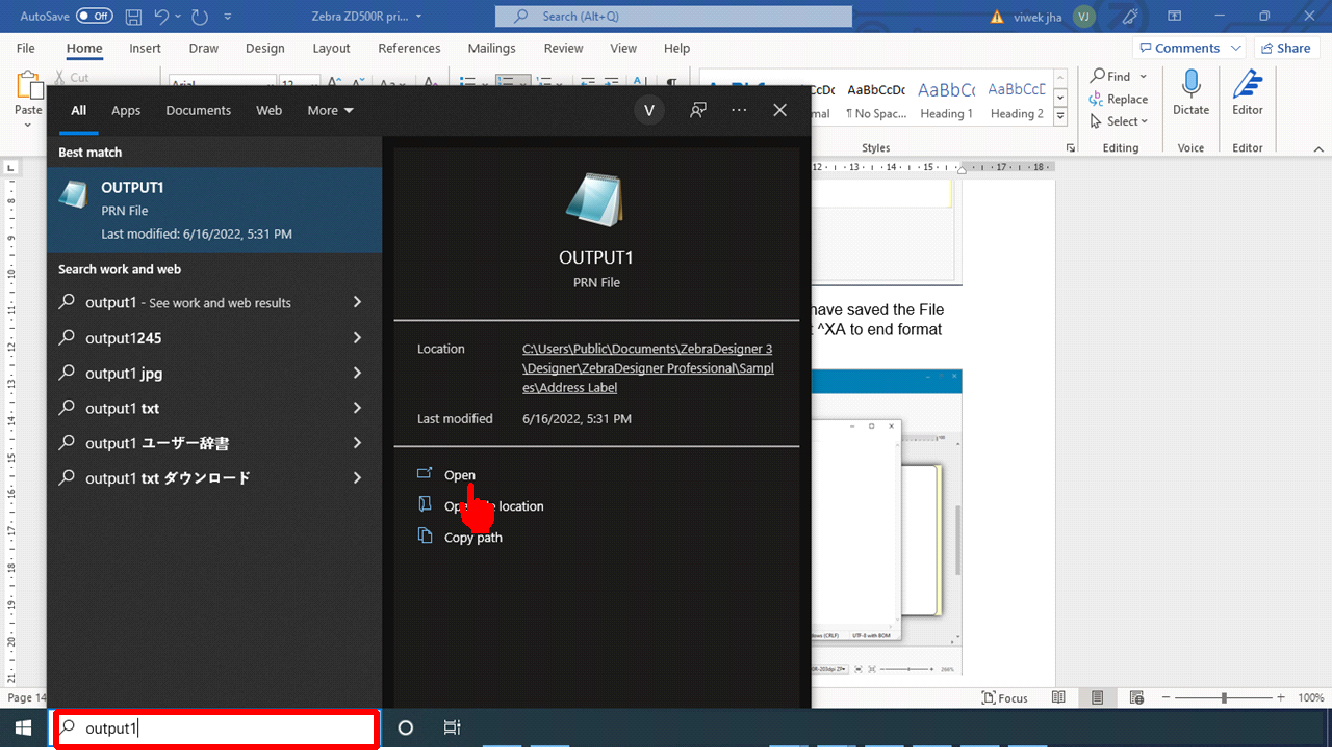

7. Open the PRN file from the saved location.

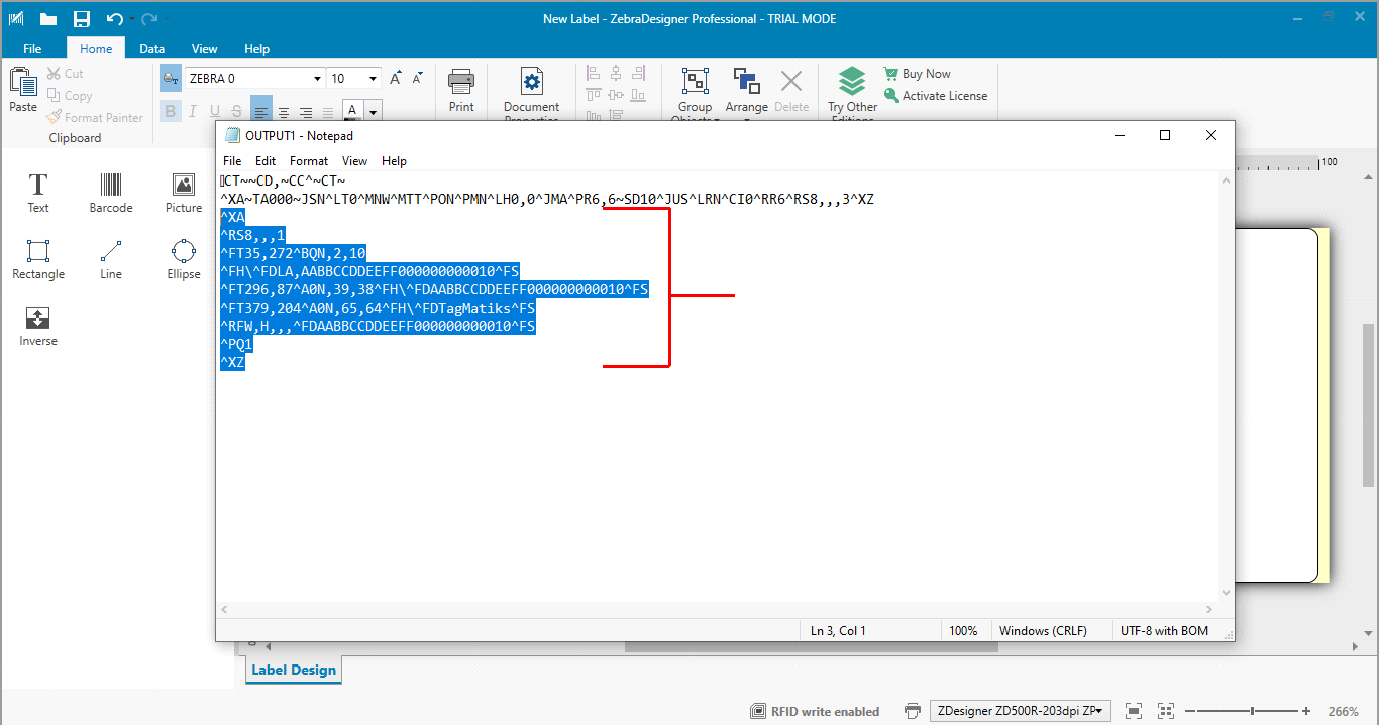

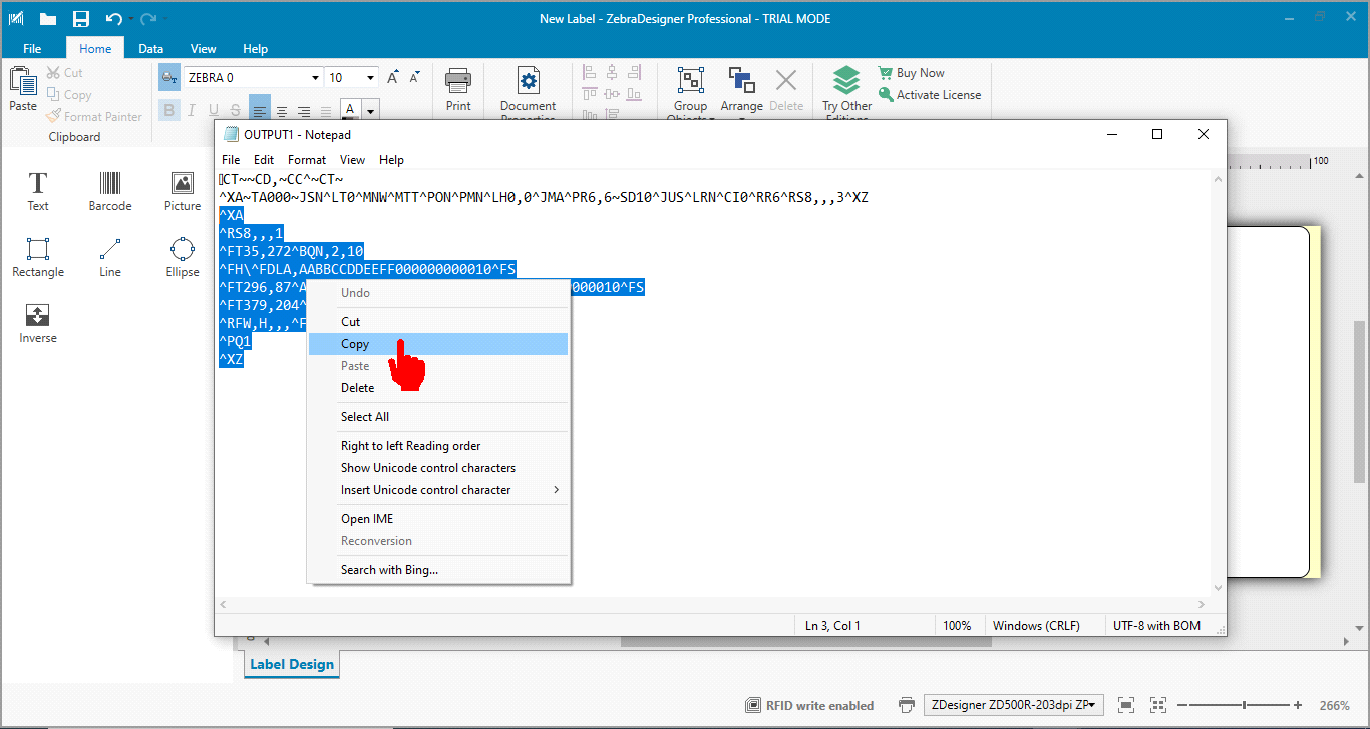

8. Select the command from start format “^XA” to end format “^XZ” command as shown in image below.

9. Copy the selected command as shown below.

10. Then paste it in the “Template” section

11. Click “Save” to save the changes.

Connecting the Printer with TagMatiks AT Lite.

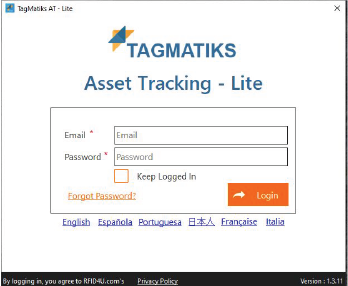

1. Open the TagMatiks AT Lite application and login into it.

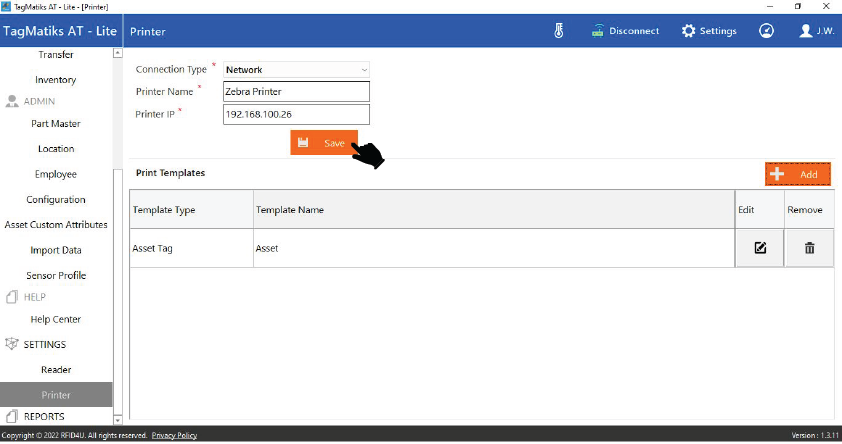

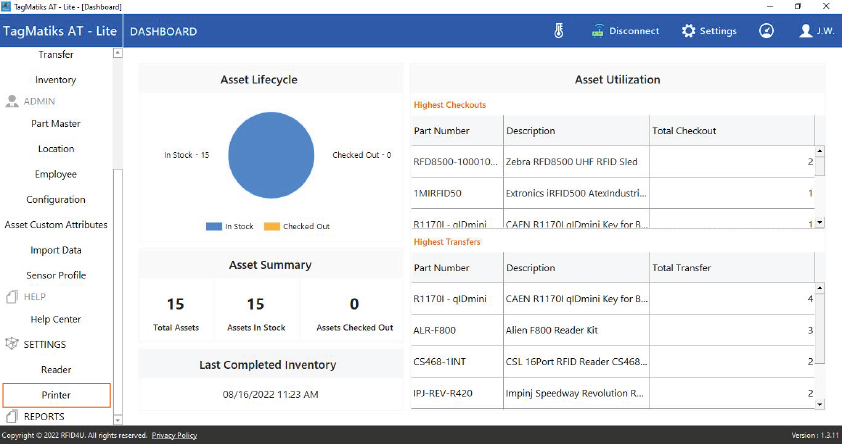

2. Please click on “Printer” button which is located under the settings menu in bottom left side of the application as highlighted in the image below.

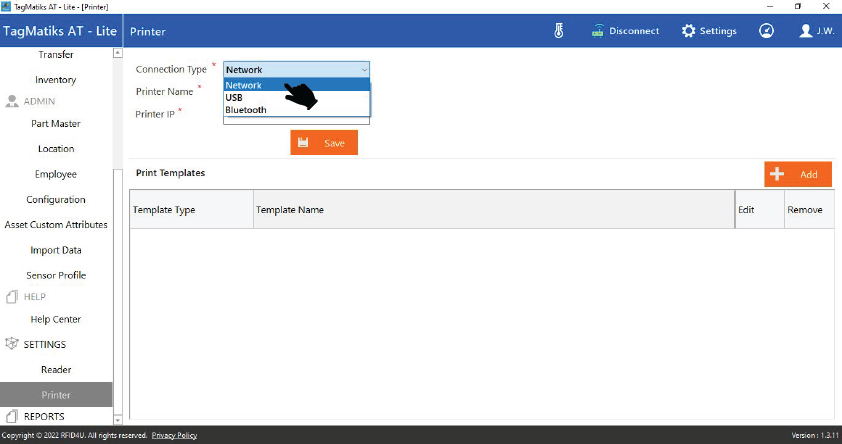

3. Please select the “Connection Type” from the drop-down options.

4. Please enter the “Printer Name”, “Printer IP” address and then click on “Save” to save the printer settings.

5. On successful connection, an acknowledgment/pop-up window will appear stating that “Printer details saved successfully”.

Note: Here, Printer name is “Zebra ZD500R” and printer IP is “169.254.155.85”

G. Variable Mapping and Printing with TagMatiks AT Lite

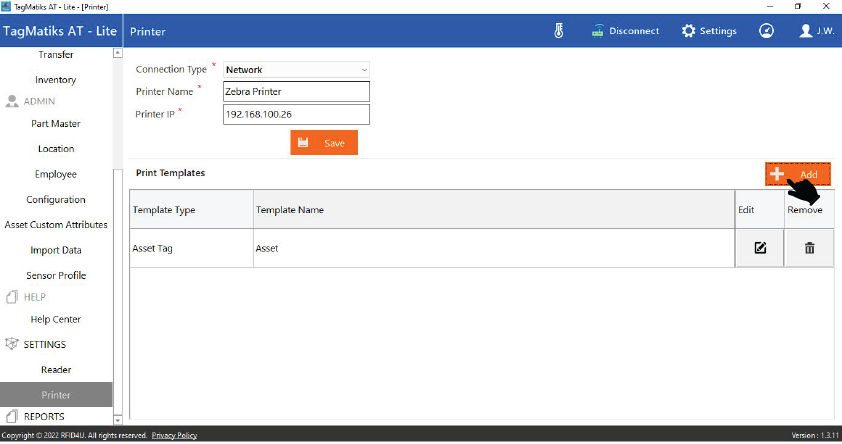

1. In TagMatiks AT Lite application, under Printer settings; please click on “Add” button to add the print templates

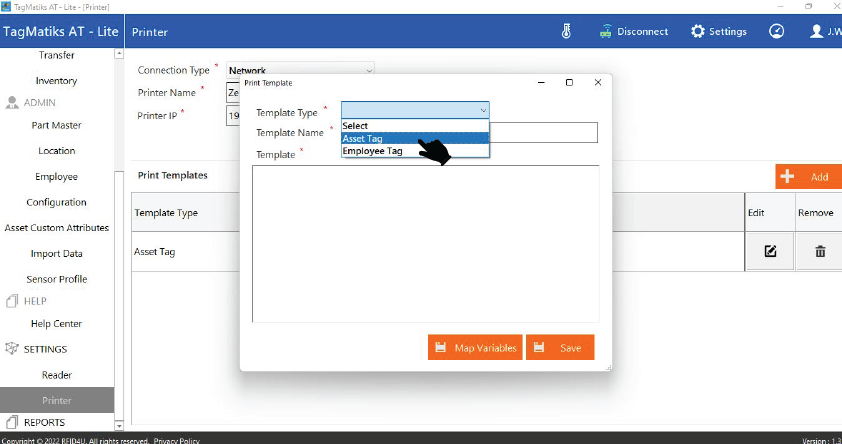

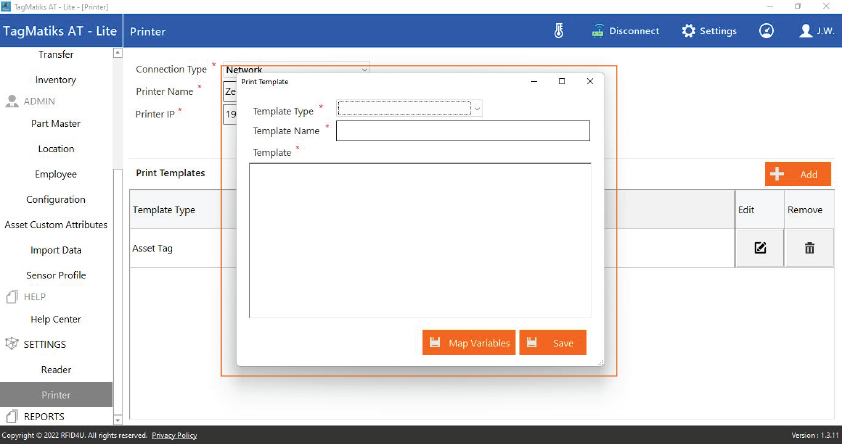

2. A new print template windows will appear as highlighted in the image below.

3. Please click on “Template Type” from dropdown option and then enter the name in “Template Name” field.

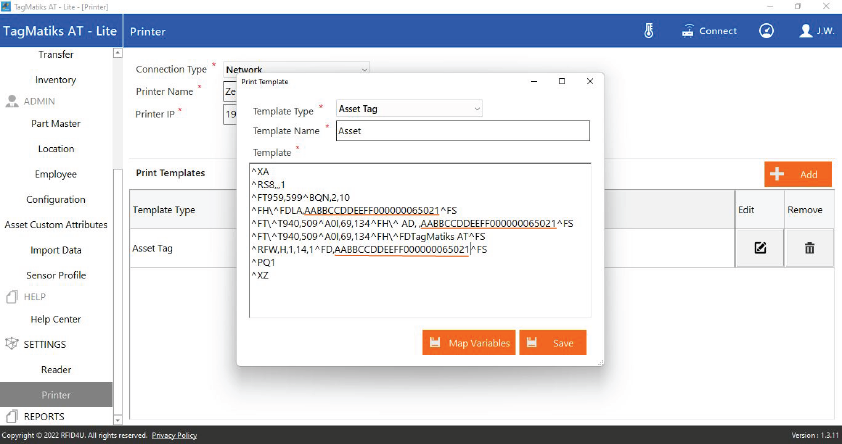

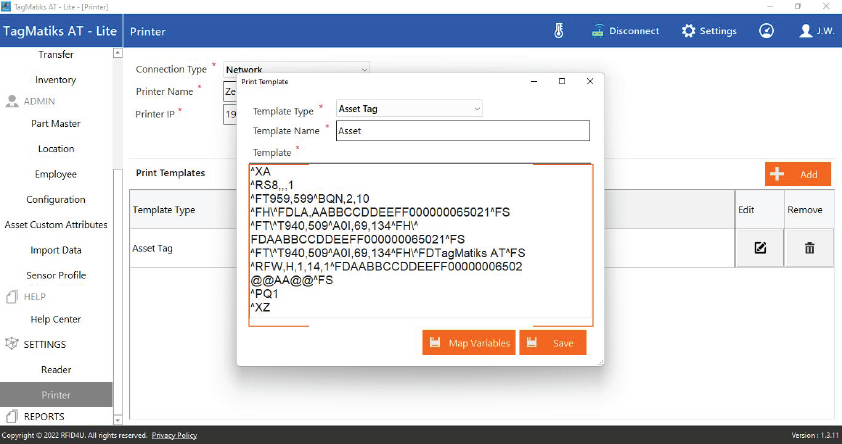

4. Please paste the template from PRN file.

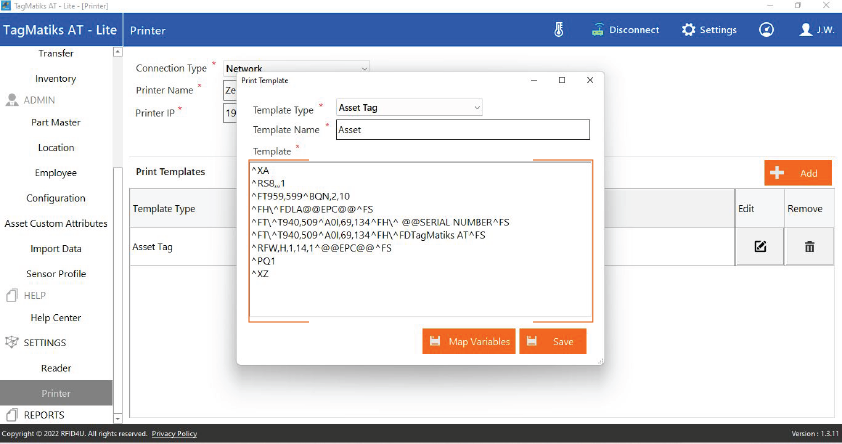

5. Please replace the values which you have entered in text, barcode and RFID, with “@@Variable Name@@”

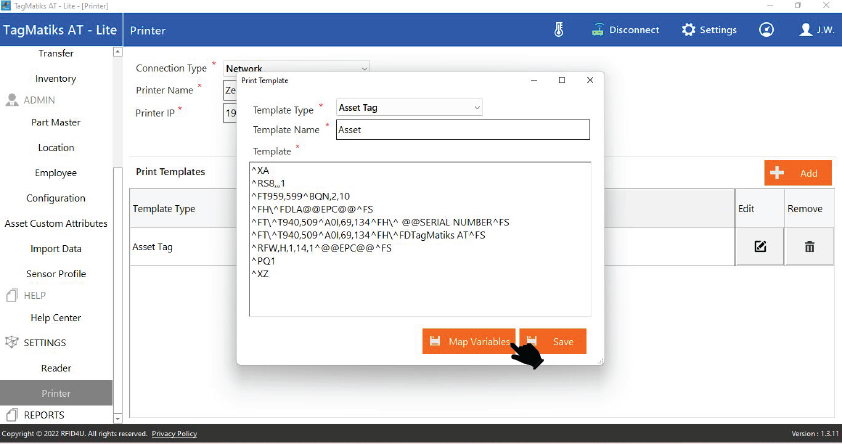

6. For example, we have replaced the barcode and RFID Values with @@EPC@@ and Text with @@serial number@@ to make all these values as variables.

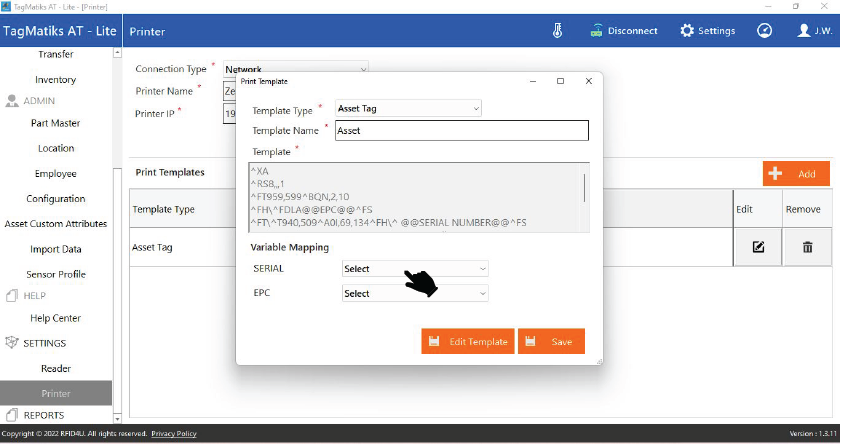

7. Please click on “Map Variable” button.

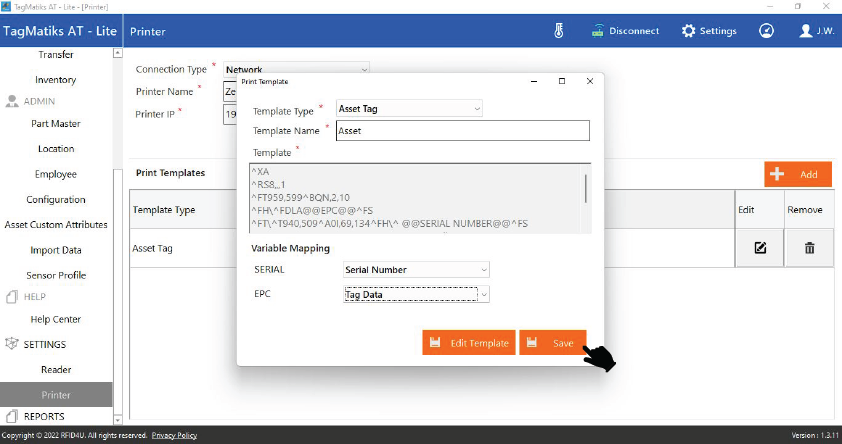

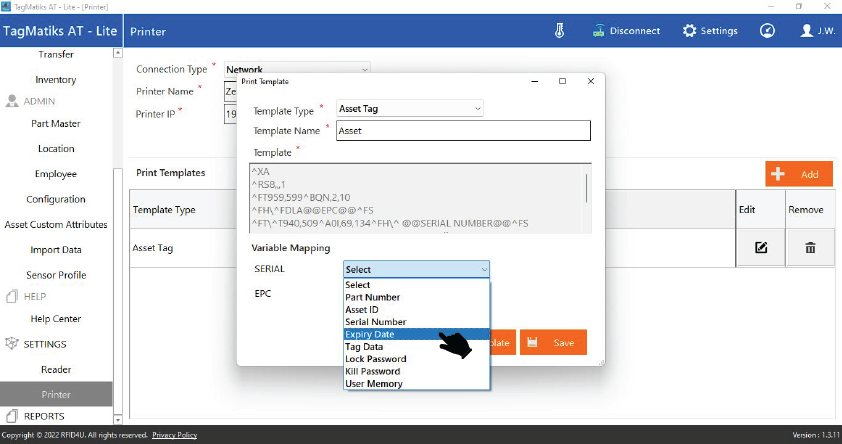

8. For mapping the variable please sect the field from variables dropdown button.

9. For example, we have selected the serial number and Tag Data for “SERIAL” and “EPC” respectively.

10. Please click on “Save” button for save the Template as shown in image below.

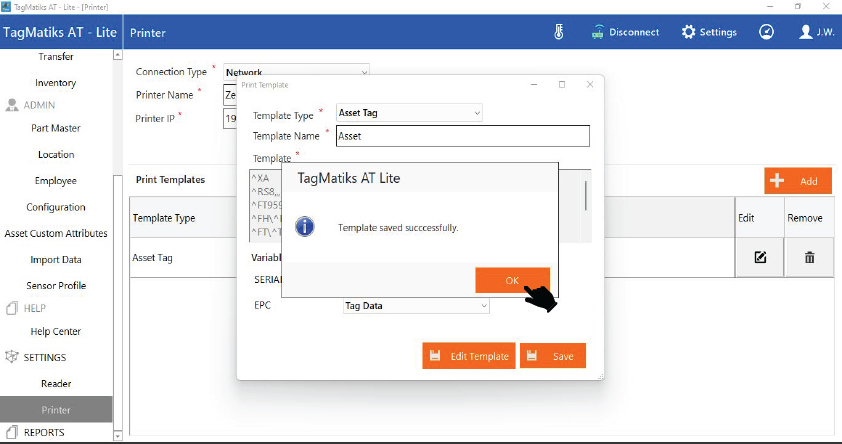

11. On successful save, an acknowledgment/pop-up window will appear stating that “Template saved successfully”.

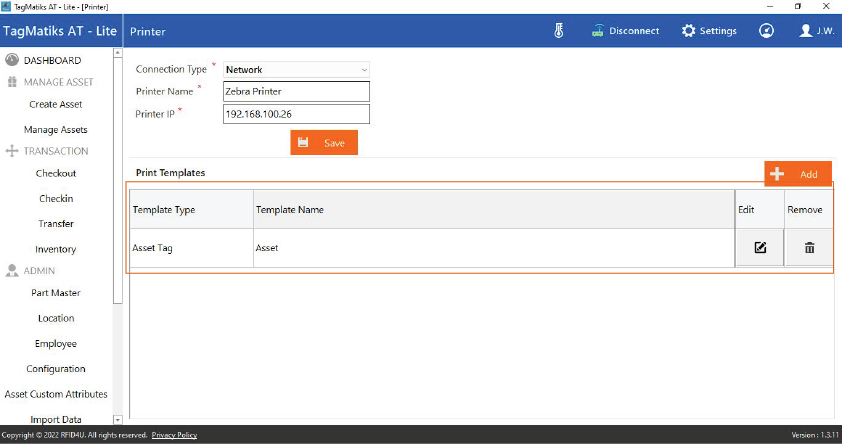

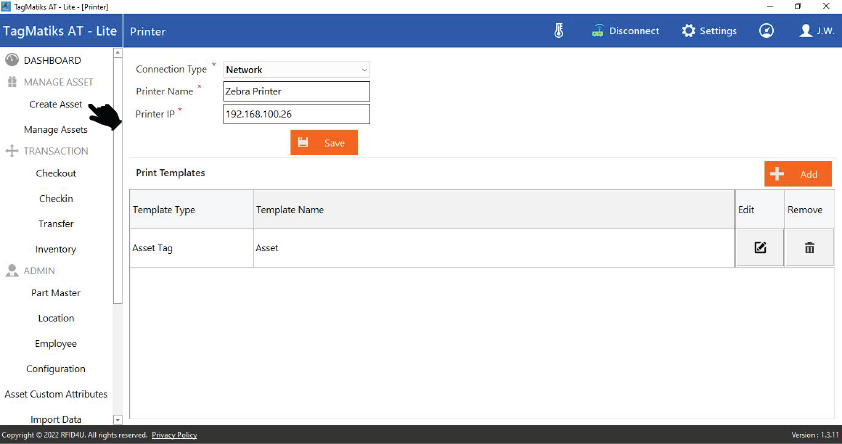

12. And it will appear in your Template list as highlighted in image below.

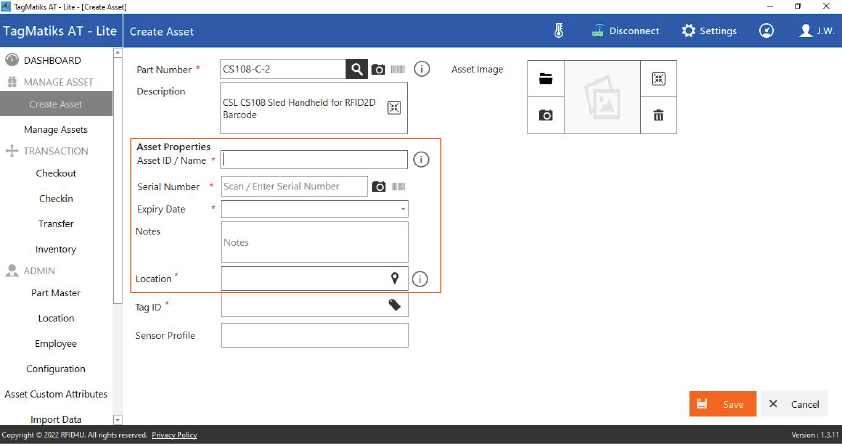

13. Please scroll up the menu from left hand side of application and click on “Create Asset” button.

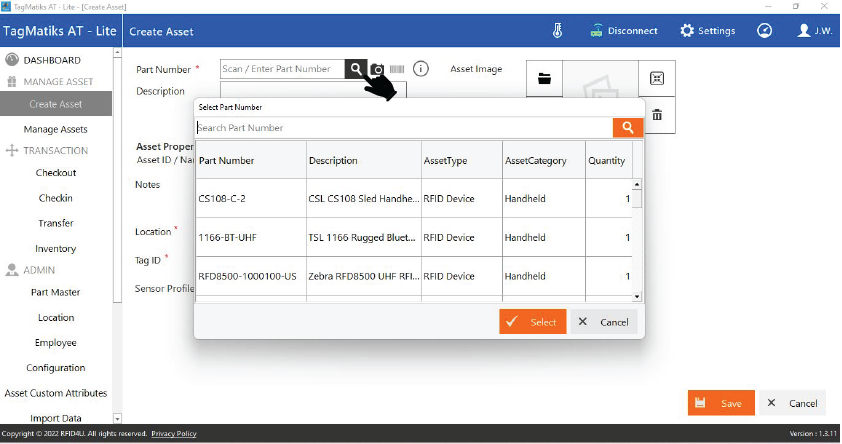

14. Please click on search icon of “Part Number” and select the part number from list as shown in the image below.

15. Please enter the values in relevant field for “Asset Properties”.

16. Enter the “Serial Number” or use barcode scanner by clicking on barcode icon

17. Then select the “Expiry Date” from Calendar by clicking on dropdown button.

18. You can also enter “Notes” if you wish to maintain along with this Asset.

19. Select the “Location” by clicking on location button.

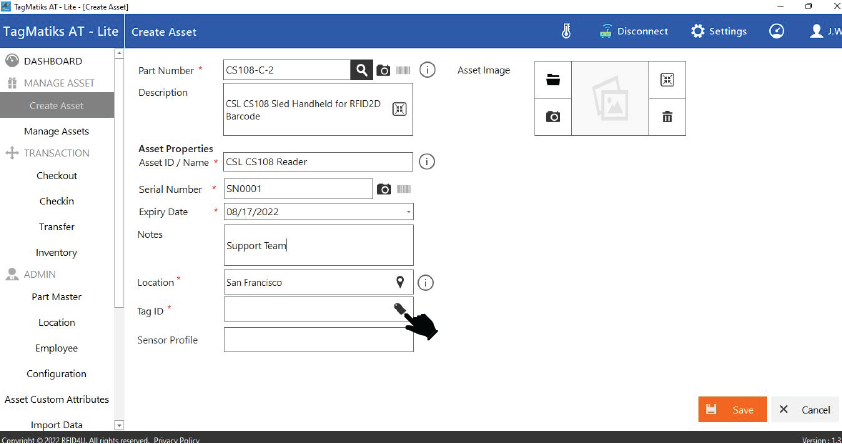

20. Please click on “Tag ID” Field for printing the tag.

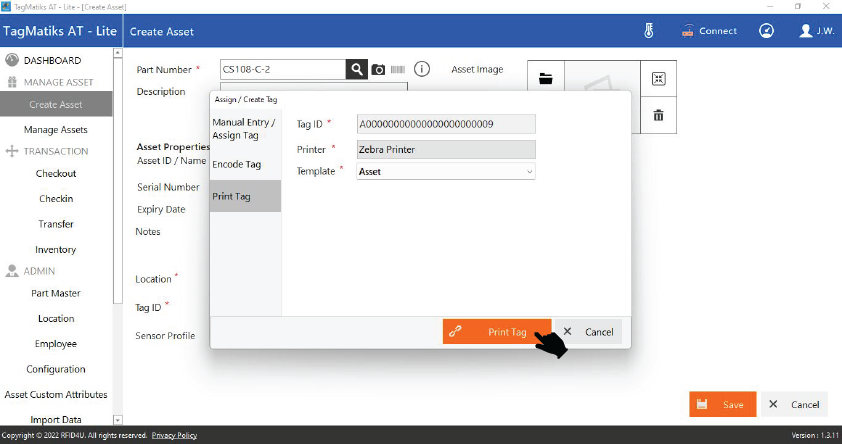

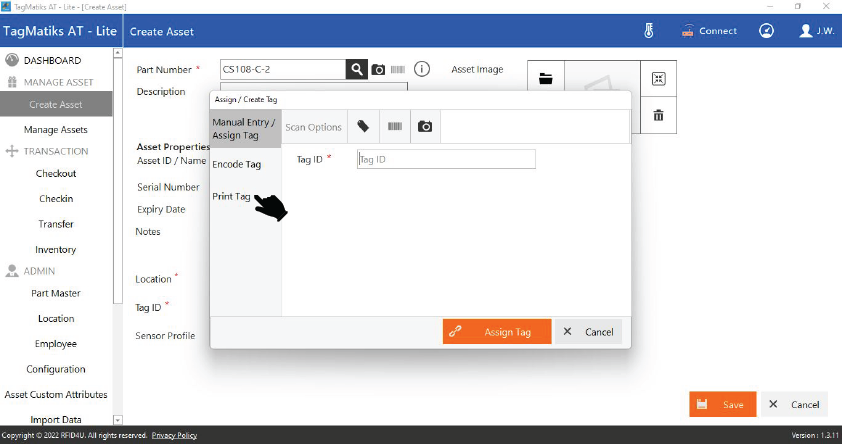

21.New window will open as shown in the image below, please click on “Print Tag” button.

22. Tag ID will appear and automatically updated

23. Printer name will appear which you have saved in your printer settings

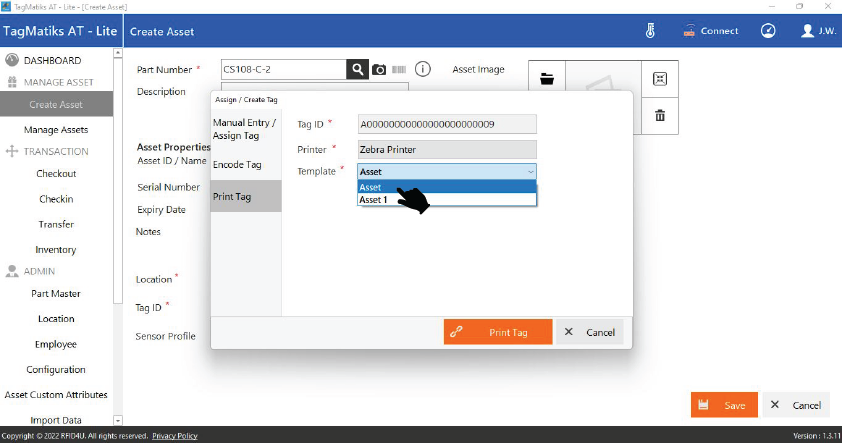

24. Please select the “Template”

25. Please click on “Print Tag” Button to Print the tag.
