Troubleshooting Your RFID Printer - Zebra RFID Printers


Summary

This article describes common problems you may encounter using Zebra RFID printers and helps you to resolve them.

The possible issues are:

  • Head Open
  • Media Out
  • Ribbon Out
  • TPH Not Authenticated
  • Printing Issues
  • Communications Problems
  • RFID Hardware Problems
  • Error with TagMatiks AT Lite

Note: For demonstration purposes, Zebra ZD500R is taken as an example.

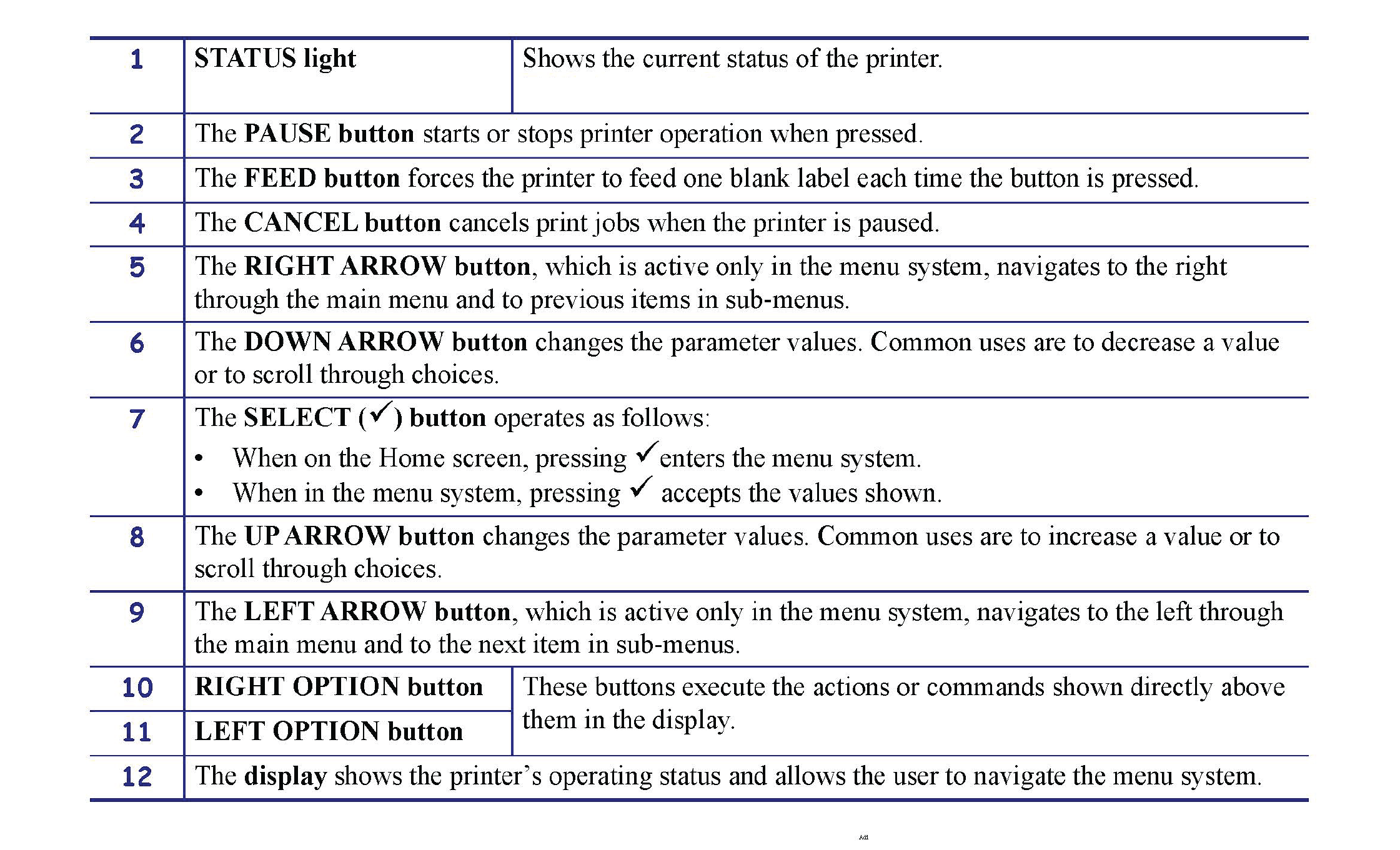

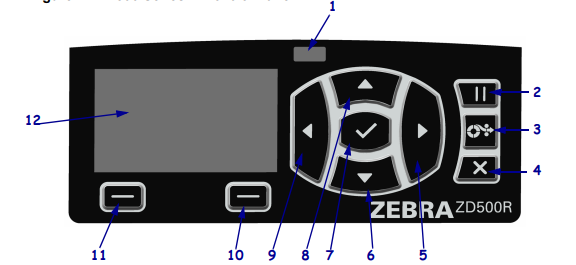

A. Control Panel

The control panel indicates the printer’s operating status and allows the user to control basic printer operation.

If the STATUS light is steady red indicates one of the following:

  • The media supply is out.
  • The ribbon supply is out.
  • The printhead is open.
  • Cutter malfunction.

Then printer needs attention and cannot continue without user intervention

A. Head open

Please see if the printhead is not fully closed, close the printhead completely.

B. Media out

Possible Cause

1. Please check whether the media is not loaded incorrectly, load media correctly.

2. Check if there is Misaligned media sensor, adjust the position of the media sensor.

3. If the printer is set for noncontinuous media, but continuous media is loaded. Install the proper media type or reset printer for the current media type and calibrate the printer.

Procedure for calibration of label media with liner and inter-label ‘GAP’ between labels.

1. Load the printer with your chosen label media. Verify the media sensor is in the centre position for label gap (transmissive) sensing.

2. Remove the first 3 inches or 80 mm of labels from the liner. Place the label-less liner over the platen (driver roller) and the leading edge of the first label under the media guides.

3. Close the printer. Turn the printer power ON. Press the menu’s ‘Home’ button.

4. Navigate to the ‘SENSORS’ menu button and press the ‘Select’() button.

5. Use the ‘Left’ and ‘Right’ navigation arrows to browse to the ‘MANUAL CALIBRATION’ procedure.

6. Press the select button (—) below the START on the lower right hand of the display.

7. The display will have a message: LOAD BACKING PRINTER PAUSED

8. Press the Pause button once to start the calibration procedure. When it has finished the first part of the calibration, the display will read: RELOAD ALL CONTINUE.

9. Press the Pause button once again to continue the calibration procedure. The printer will begin feeding several labels and then it will stop with the display message reading: READY

C. Ribbon out

Possible Cause

In thermal transfer mode the end of the ribbon roll has been detected.

1. Then replace the empty ribbon with a new roll.

TPH not authenticated

1. If printhead is damaged, replaced incorrectly, or was replaced with one that is not a genuine Zebra™ printhead. Then please Install a genuine Zebra™ printhead.

Printing Issues

1. Check if the printhead is dirty, Clean the printhead

2. Please check if the printer is set at an incorrect darkness level and/or print speed. for optimal print quality, set the darkness to the lowest possible setting for you for bar codes and balance that with graphic and text quality in your application. Do not set print speeds above the manufacturer’s maximum rated speed for your media or ribbon.

3. Check if you are using an incorrect combination of labels and ribbon for your application.

I. Switch to a different type of media or ribbon to try to find a compatible combination.

4. You may be using the wrong power supply

I. Verify the printer has the correct 100Watt power supply that came with this printer.

5. The printhead has worn out.

I. Replace the printhead. The printhead is a consumable item and will wear out due to friction between the media and printhead. Using unapproved media may shorten life or damage your printhead.

6. The platen may need cleaning or replacement.

I. Clean or replace the platen (drive) roller.

F. Communications problems

1. A label format was sent to the printer but was not recognized. The DATA light does not flash.

Possible Cause

A. The communication parameters are incorrect.

Recommended Solution

I. Check the printer driver or software communications settings (if applicable).

II. Check your printer communication Interface with your computer, if your printer is connected with ethernet, ping the IP address of printer in your pc.

III. When the printer is directly connected to the PC, make sure the PC is on the same network & subnet as the printer or vice versa.

IV. After connecting the ethernet cable to printer, just check the pinging status of the Printer.

V. Open the command prompt and type the command as:

VI. "ping < Printer IP > -t"

VII. For example, the Printer IP address is 192.168.100.161; so, command is "ping 192.168.100.161 -t". Refer the image above.

VIII. If the ping is successful.

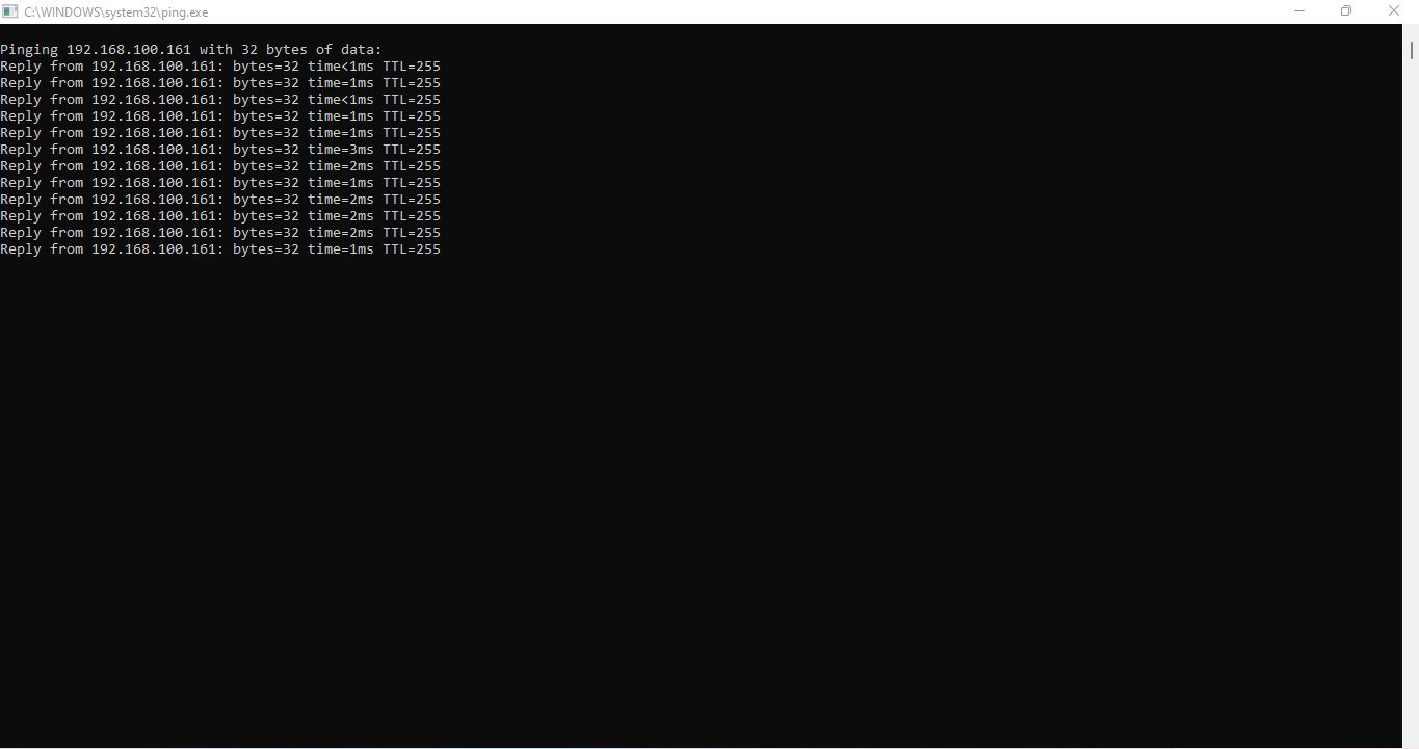

IX. you will probably see the reply as “Reply from 192.168.100.161: bytes=32 time=2ms TTL=64”, as shown below:

G. RFID Problems

If the printer encodes the wrong tag or printed data does not match the encoded data. It means, the printer is not calibrated for the media being used.

Recommended Solution is

1. Perform media calibration.

2. Perform RFID tag calibration

I. Press the feed button once to feed (advance) one label.

II. Press the menu’s ‘Home’ button. Navigate to the ‘RFID’ menu button and press the ‘Select’ button.

III. Use the ‘Left’ and ‘Right’ navigation arrows to browse to the ‘RFID CALIBRATE’ procedure. Press the select button (—) below the START on the lower right hand of the display.

IV. The printer will slowly feed a label while adjusting the location and RFID read/write communication settings for your chosen RFID tag/label. The printer will feed an additional label in some cases when calibration has completed successfully with the display message reading: READY

V. Remove excess media. media calibration has finished, and you are ready to print.

3. if necessary, adjust the RFID settings manually

H. Error with TagMatiks AT Lite

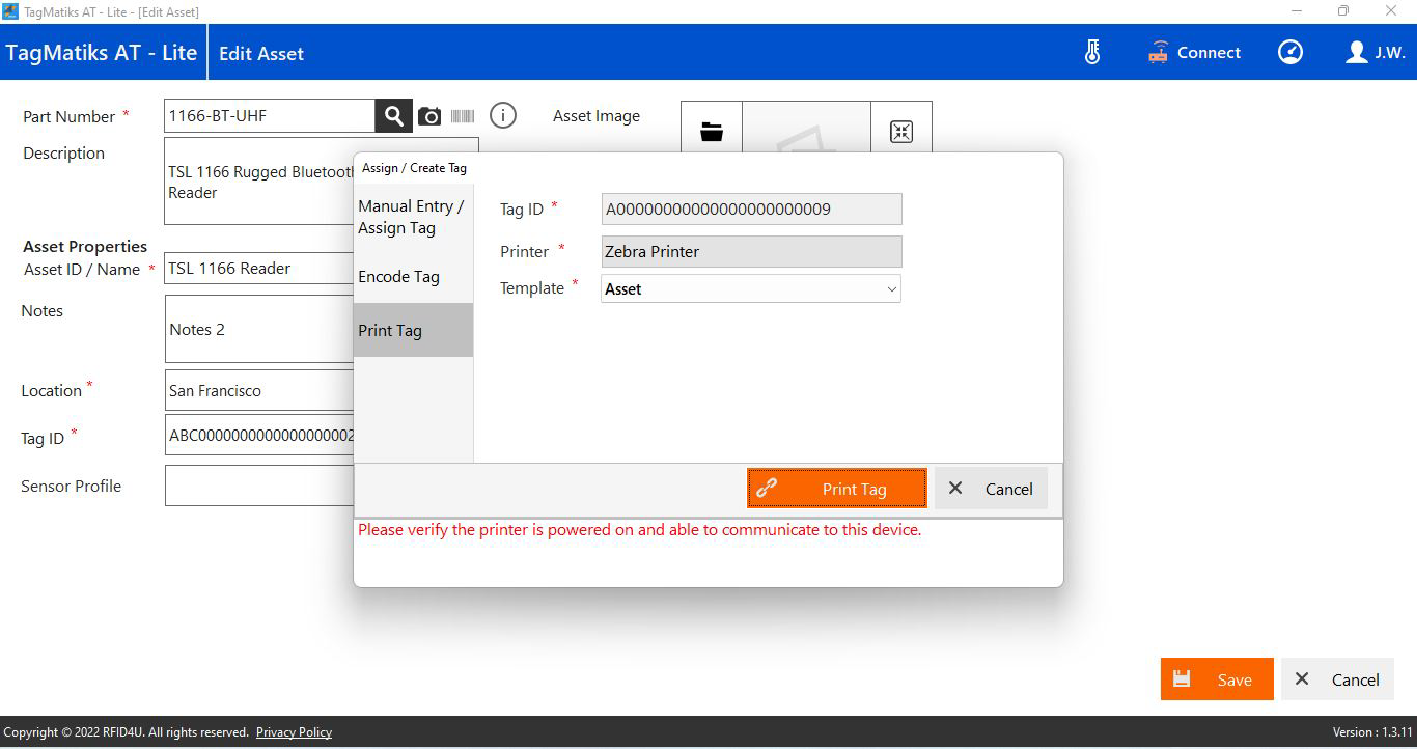

If you are getting the error “Please verify the printer is powered on and able to communicate to this device” In TagMatiks AT Lite as shown in image below.

1. Please check your printer IP address is pinging or not, if printer is connected with your pc on network.

2. Please check your printer cables are properly plugged in and printer is in ready state.

3. Check your printer communication Interface with your computer, if your printer is connected with ethernet, ping the IP address of printer in your pc.

4. When the Printer is directly connected to the PC, make sure the PC is on the same network & subnet as the Printer or vice versa.

5. After connecting the ethernet cable to printer, just check the pinging status of the Printer.

6. Open the command prompt and type the command as:

7. "ping < Printer IP > -t"

8. For example, the Printer IP is 192.168.100.161; so, command is

9. "ping 192.168.100.161 -t". Refer above image.

10. If the ping is successful.

11. you will probably see the reply as “Reply from 192.168.100.161: bytes=32 time=2ms TTL=64”, as shown below:
