This section contains setup information for using CSL CS108 UHF (RAIN) RFID reader with TagMatiks AT Lite.
You must have a charged CSL CS108 UHF (RAIN) RFID to continue the setup steps.

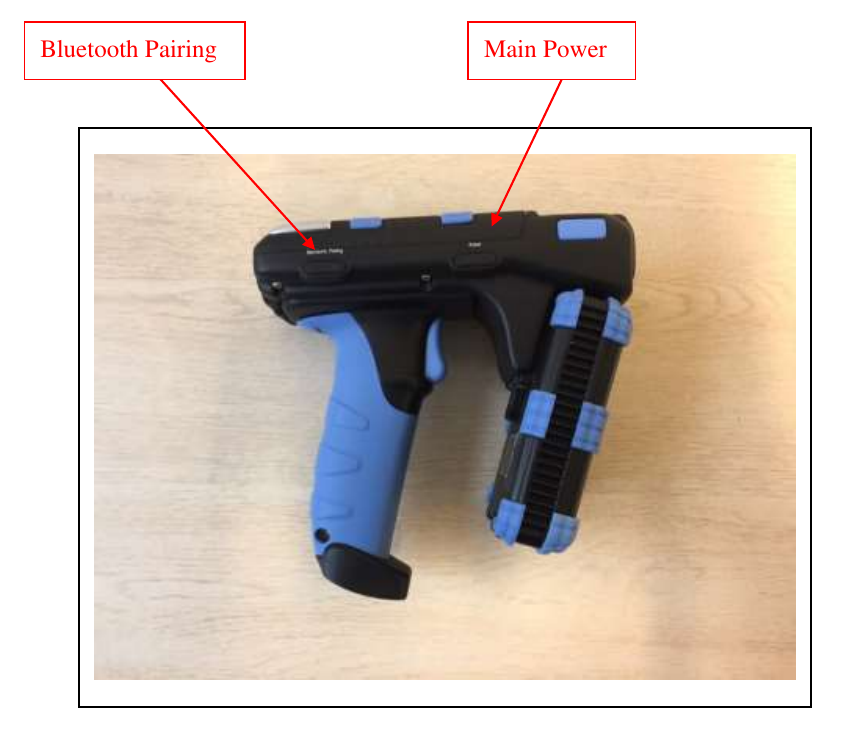

CSL CS108 can be turned ON by pressing the power button right button/LED is for the main power and the LED lights up GREEN meaning power is ‘ON’. Press the button continuously for 3 seconds, then release to power on (must release before it powers on).
To power off when the reader is on, press the button continuously for 3 seconds, then release the button to power off.
The reader will need to be connected to the computer using the Windows® 10 standard. Add Bluetooth Device process pair to using it with TagMatiks Asset Tracking Lite.
From the Start Menu, select Settings. Then in the PC Settings window, select Devices.

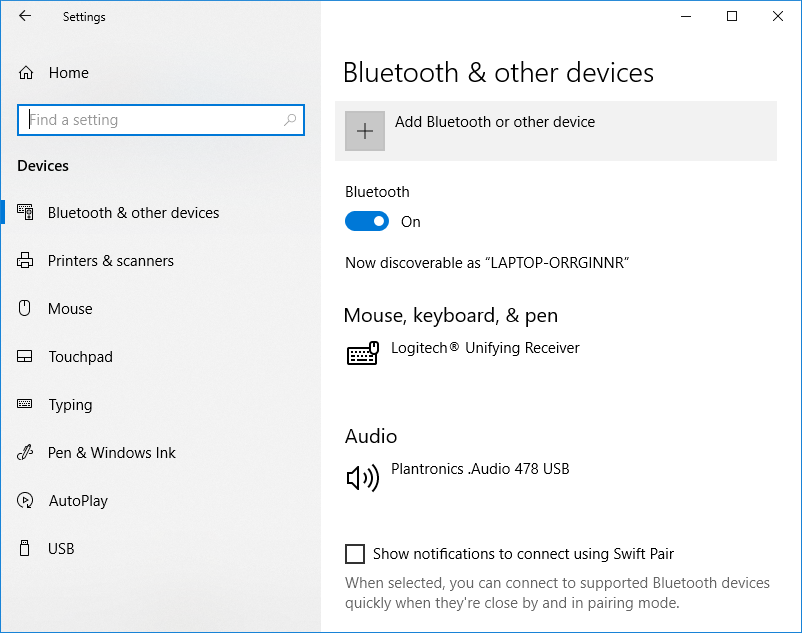

From inside the Devices window, be sure the Bluetooth & other device submenu is selected. Then click on the Add Bluetooth or other device button, as shown in Figure 03.
Make sure that Bluetooth is turned ON.
Another window will open to add a device. Select Bluetooth from this window. Then all the Bluetooth devices in range will be displayed, similar to Figure 04. The CSL CS108 reader will show up as the type (CS108ReaderB058CC). Be sure that the reader is turned ON.

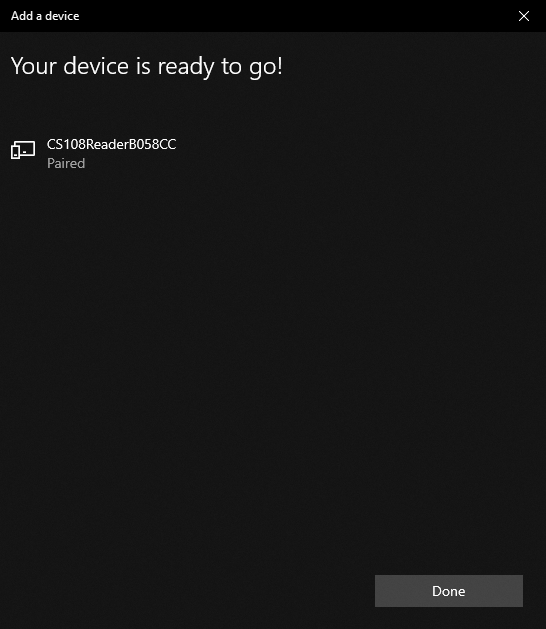

Click on the reader in this list. Password for the pairing CSL CS108 is 00000. Allow time for the connection and pairing process to complete. When finished, your reader has been paired to the computer and is ready to be used by TagMatiks Asset Tracking Lite.
This process will not need to be repeated for this computer.
Open TagMatiks Asset Tracking Lite Software and enter the settings menu.

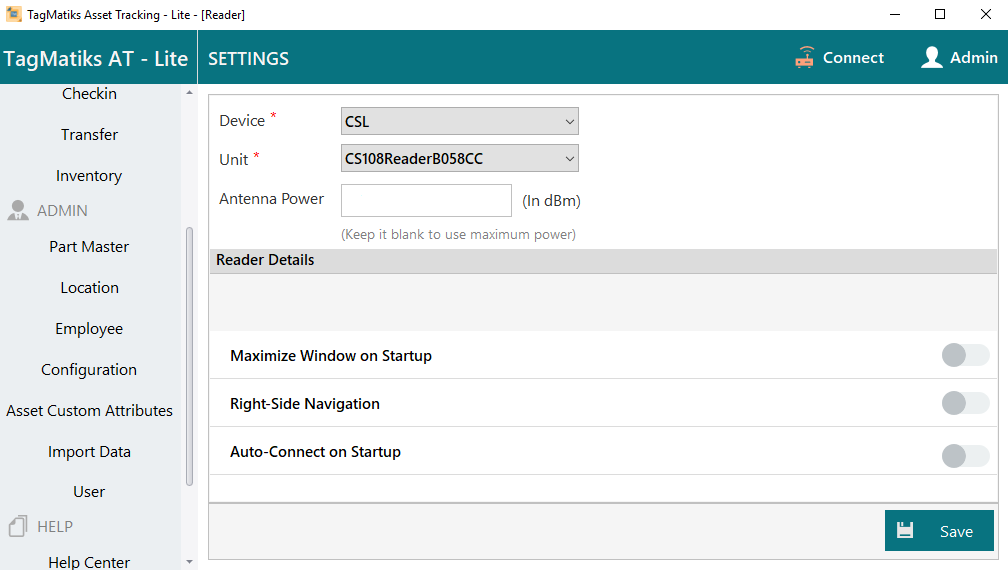

In the Reader Model dropdown menu, select the CSL108.
After Selection of the Reader Click “Connect” then Save
