TagMatiks AT Lite - iOS Help

Solving Import Tools Error


Summary

This article covers the various issues and how to solve them while importing the assets into TagMatiks AT Lite.

Pre-requisites
  • Stable Internet Connection
  • Desktop Computer with modern web browser like Mozilla Firefox, Google Chrome or Safari
  • Software like Microsoft Excel or any other (.xls/.xlsx / .csv) editor

This document is divided into multiple sections/Issues that might be faced while importing the assets into TagMatiks AT Lite:

  • Formatting Issue
  • Mandatory Field Mapping
  • Wrong File Extension
A. Formatting Issue

There are certain rules of formatting of the data that must be followed while importing the assets into the templates available at https://atl.tagmatiks.com/ in order to avoid errors. The following are templates which are available:

For Asset Type :
Field Name Data Type Mandatory? Unique? Maximum Length Example Data
Asset Type String Yes Yes 50 Tools
Description String - - 250 Available Tools



Data Type : String - This means that the data that is to be entered should be Alphanumeric in nature.

Asset Type : It is a mandatory & unique field that means that the no two asset types can have same Name/Value where as description field is neither mandatory nor unique

Maximum Length : The number of alphanumeric characters that can be entered in the above mentioned fields are 50 for Asset type can 250 for description.

For Asset Category :
Field Name Data Type Mandatory? Unique? Maximum Length Example Data
Asset Type String Yes - 50 Tools
Asset Category String Yes Yes 50 Hand Tools
Description String - - 250 Available Hand Tools



Asset Category : It is a mandatory & unique field that means that the no two asset categories can have same Name/Value where as description field is neither mandatory nor unique

Maximum Length : The number of alphanumeric characters that can be entered in the above mentioned fields are 50 for Asset Category can 250 for description.

For Manufacturer
Field Name Data Type Mandatory? Unique? Maximum Length Example Data
Manufacturer Code String   Yes 20 MC-BWC
Manufacturer Name String Yes Yes 50 Best Wrench Company



Manufacturer Code : It is not mandatory but a unique field that means that no two manufacturer codes can have the same Code/Value. Maximum length is 20 characters for this field.

Manufacturer Name : It is a mandatory and unique field with maximum length 50.

For Part Master :
Field Name Data Type Mandatory? Unique? Maximum Length Example Data
Asset Type String Yes   50 Tools
Asset Category String Yes   50 Hand Tools
Part Number String Yes Yes 50 123
Description String Yes   250 Part - 123
Manufacturer Name String     50 Best Wrench Company
Manufacturer Code String     50 123
Can Expire Boolean     50 true
Has Serial Boolean     50 false



Data Type : Boolean - This means that the data to be entered can either be TRUE or 1 for whether the Asset can expire or Has Serial or False or 0 for the Asset that can expire or Has Serial.

Part Number : It is a mandatory and unique field with a maximum length of 50 characters which can be alphanumeric in nature.

For Employee :
Field Name Data Type Mandatory? Unique? Maximum Length Example Data
Employee Number String   Yes 50 EMP-01
First Name String Yes   50 John
Last Name String Yes   50 Smith
Email Id String   Yes 250 smith@company.com
Mobile Number String     50 000-000-1423
Tag Id String     50 ABC00000000000000000123F



Employee Number : It is a mandatory and unique field with a maximum length of 50 characters which can be alphanumeric in nature.

First Name & Last Name : They are mandatory fields with a maximum length of 50 characters which can be alphanumeric in nature.

For Location :
Field Name Data Type Mandatory? Unique? Maximum Length Example Data
Email String Yes Yes 250 admin@company.com
First Name String Yes   50 john
Last Name String Yes   50 smith
Mobile Number String     50 0000001234
User Role Number Yes   50 2



Location Name & Display Code : They are mandatory & unique field with maximum length of 50 characters which can be alphanumeric in nature.

Note : While entering the location details, the first location that should be entered is the parent location only after that other locations can be entered else error will occur.

For Assets
Field Name Data Type Mandatory? Unique? Maximum Length Example Data
Asset Type String Yes   50 Tools
Asset Category String Yes   50 Hand Tools
Part Number String Yes   50 123
Description String Yes   50 Hand Tool Assets
Manufacturer Name String     50 Best Wrench Company
Has Serial Boolean     50 true
Can Expire Boolean     50 false
Asset ID / Name String Yes Yes 50 AST-001
Serial Number String     50 SL-001
Expiry Date Date     50 12/31/2035
Notes String     250 Store 001 - Asset 3/4
Location Name String Yes   50 CA
Tag Data String Yes Yes 50 ABC00000000000000000123F
Sensor Profile String     50 Temperature-10-90
Custom Field 1 (Color) String     50 RED
Custom Field 2 (Size) String     50 11"
Custom Field 3 String     50
Custom Field 4 String     50
Custom Field 5 String     50



Expiry Date : It should be noted that the format of the date should always be MM/DD/YYYY

Mandatory Field Mapping

After the user has entered the information in the templates provided by the TagMatiks website, it is ready to be uploaded on the website. Click Browse to upload and file and finally click Import Data to bring the data in.

All the header fields should be mapped with their respective fields before clicking “Stage for Import”.

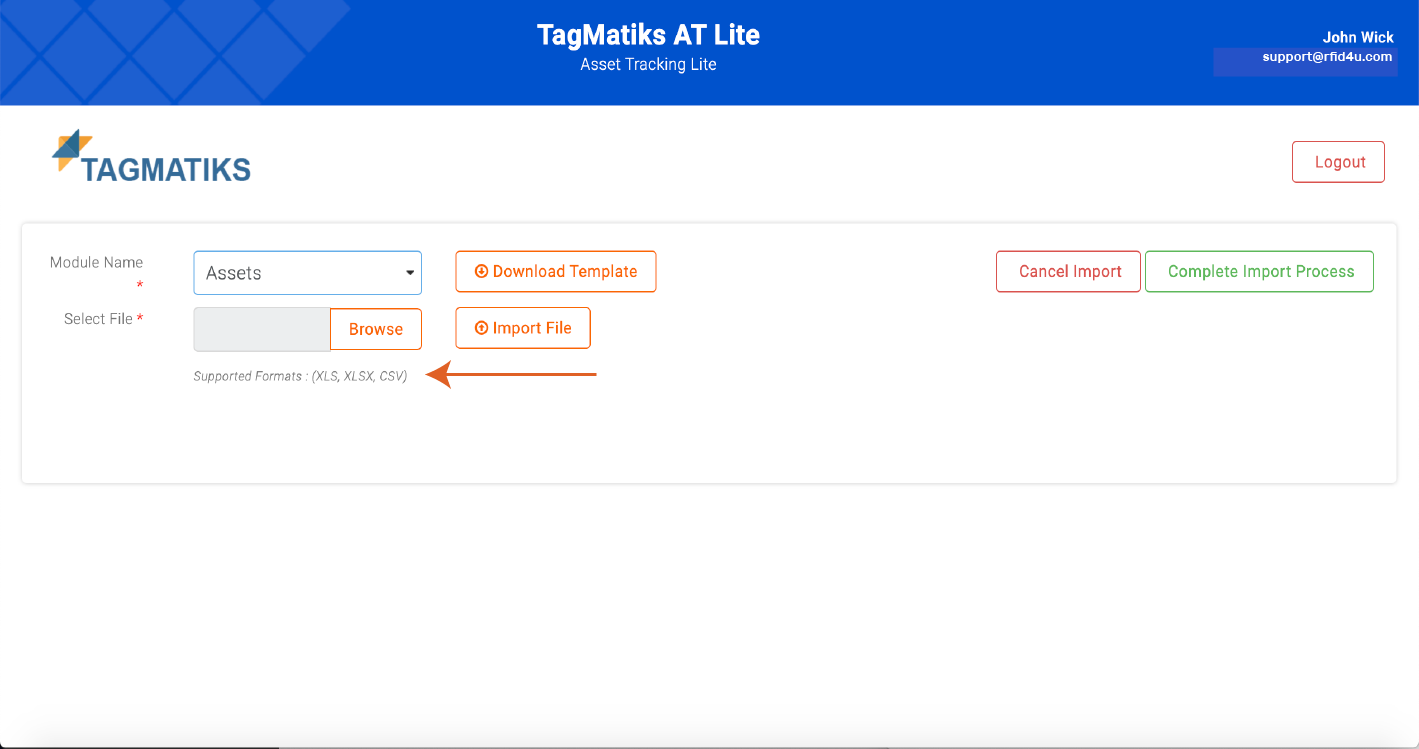

C. Wrong File Extension

It should be noted that TagMatiks AT Lite supports .XLS, .XLSX & .CSV formats for uploading the Asset details and only files in these formats will be imported without error.
